Kia Cee'd: Charging System / Alternator Schematic diagrams
Kia Cee'd JD Service Manual / Engine Electrical System / Charging System / Alternator Schematic diagrams

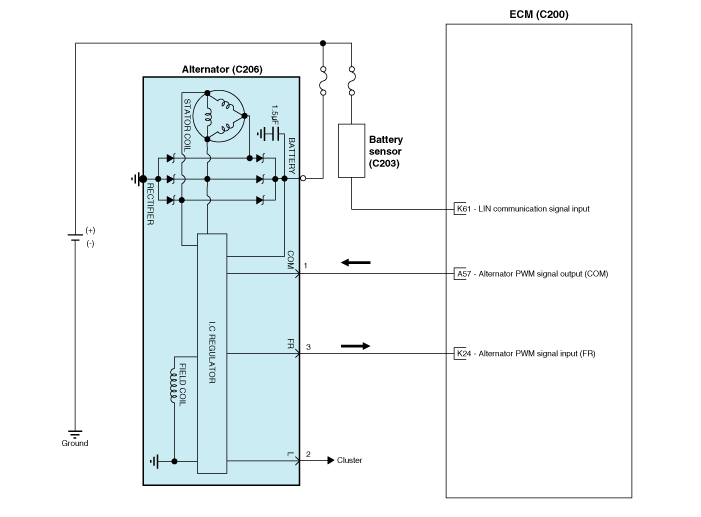

| Circuit Diagram |
Alternator Components and components location
Components
1. OAD
(Overrunning Alternator Decoupler)
2. Front Bracket
3. Front Bearing
4. Stator
5. Rotor
6. Rear Bearing
7. Rear
...
Alternator Repair procedures
Removal
1.
Disconnect the battery negative terminal.
2.
Loosen the mounting bolts (A) and then, turn the adjusting bolt (B)
clockwise ...
