Kia Cee'd: Luggage rail system (wagon) / Applying the shackle on the guide rail

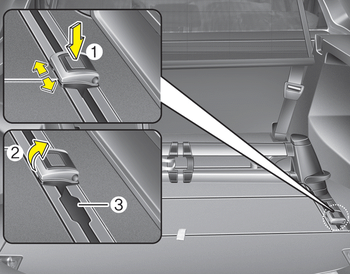

- Put the shackle (A) in the position where the shackle is put in the rail.
- To move the shackle, press the button (1) and move the shackle along the rail.
- Make sure the shackle is clicked into place.
- To fix the luggage, pull up the hook (2) in the middle cargo bay.
- Now you can mount e.g. belt to fix the luggage in the hook.
- The shackle cannot be used in the position where the shackle is put in and out of the rail (3).
CAUTION
Tensile force : max. 30 kgf. for 1 shackle
