Kia Cee'd: Audio / Audio Remote Control Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Audio / Audio Remote Control Schematic diagrams

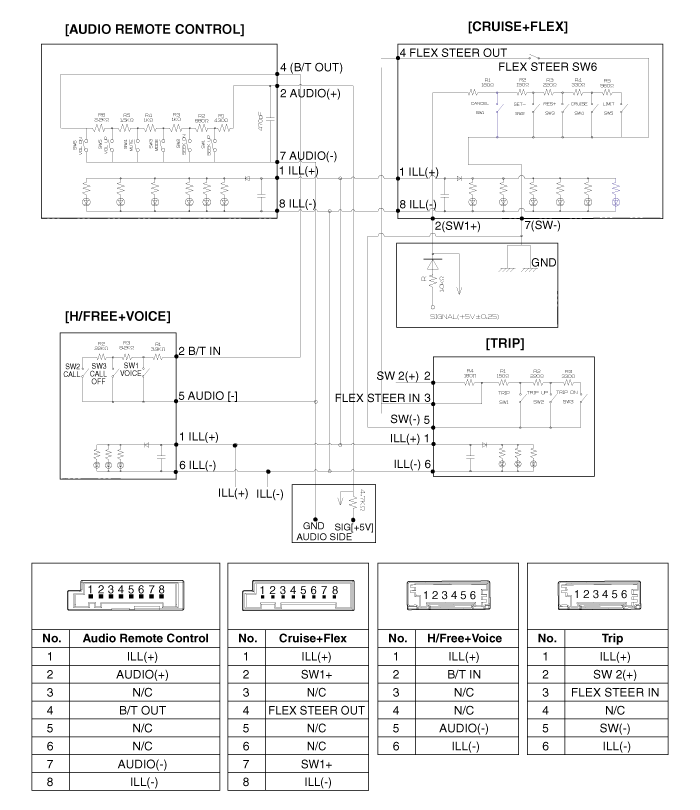

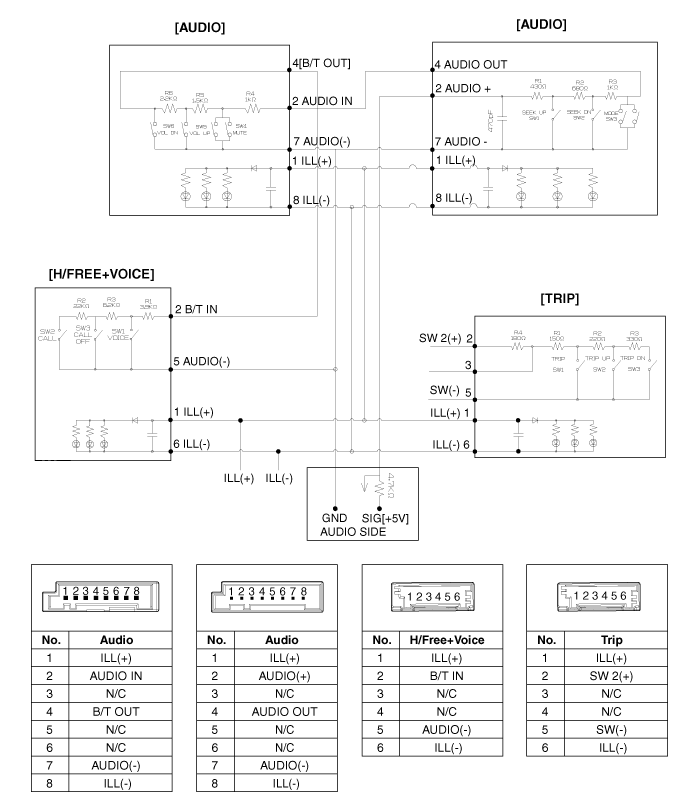

| Circuit Diagram |

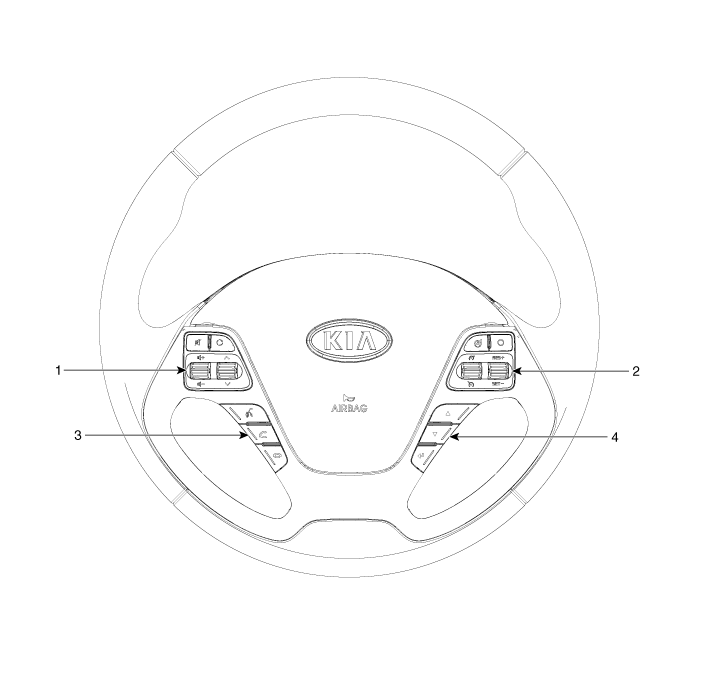

| Type A |
| 1. Remote control switch(LH:
Audio) 2. Remote control switch(RH: Cruise+Flex) |
3. Bluetooth hands free switch
4. Trip switch |

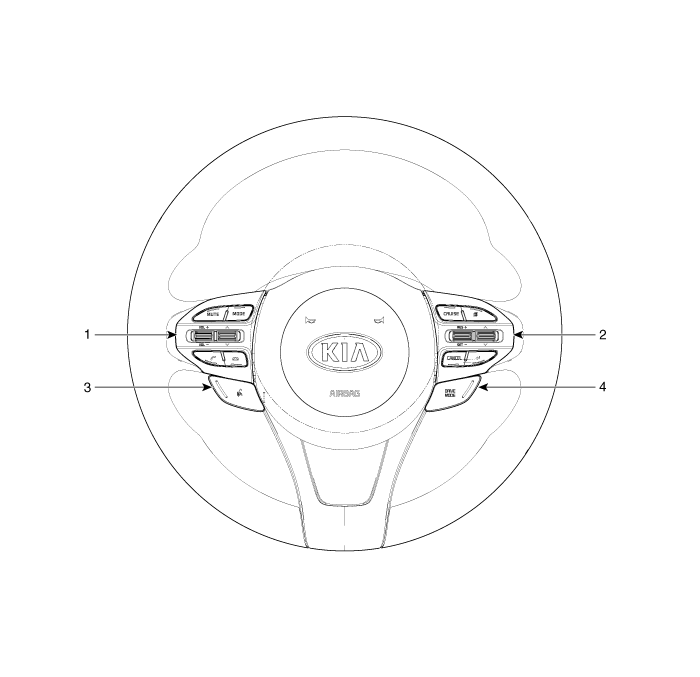

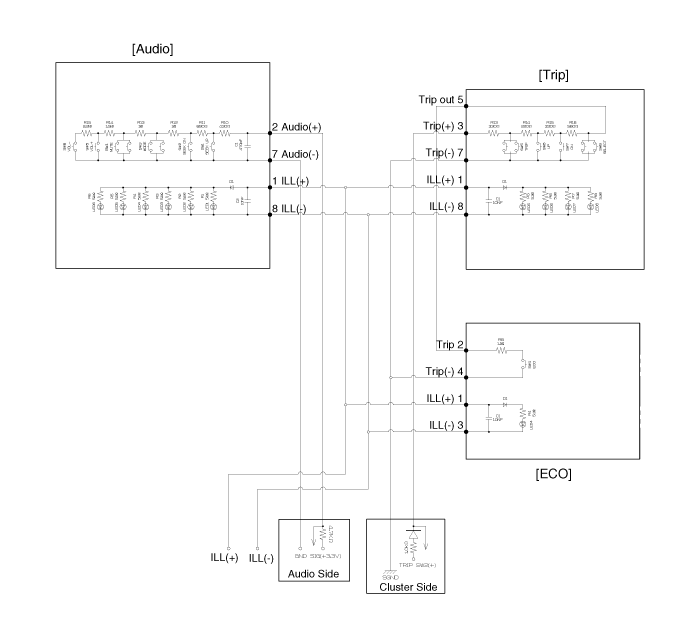

| Type B |
| 1. Audio & Drive mode swith
2. Trip & Cruise control switch |
3. Voice recognition switch
4. Speed limit switch |
Antenna Repair procedures
Removal
1.
Remove the rear roof trim.
(Refer to Body - "Roof Trim Assembly")
2.
Disconnect the roof antenna connector ...
Audio Remote Control Repair procedures
Inspection
Type A
1.
Check the audio remote control switch (A) for resistance between terminals
in each switch position.
[Audio]
...
