Kia Cee'd: Driveshaft Assembly / BJ Boot Components and components location
Kia Cee'd JD Service Manual / Driveshaft and axle / Driveshaft Assembly / BJ Boot Components and components location

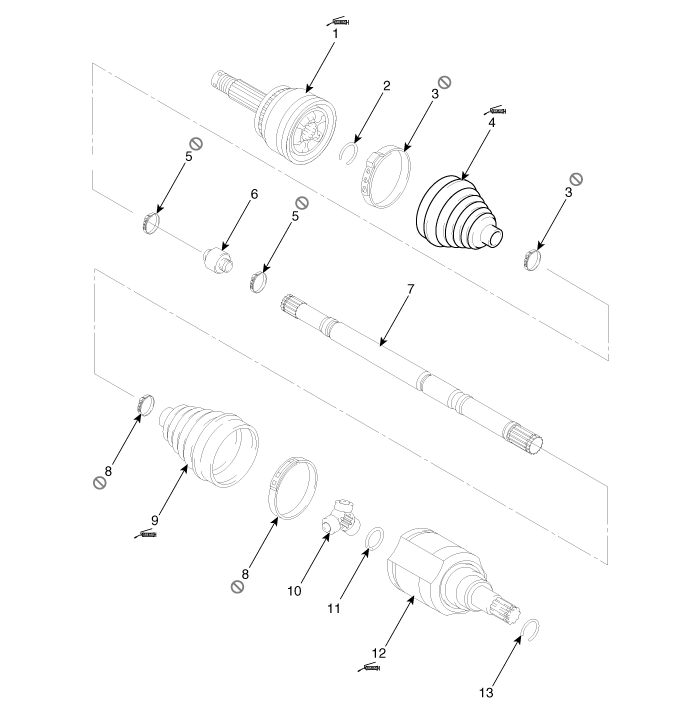

| Components |
| 1. BJ
assembly 2. BJ circlip 3. BJ boot band 4. BJ boot |
5. Dynamic
damper band 6. Dynamic damper 7. Shaft 8. TJ boot band |
9. TJ
boot 10. Spider assembly 11. Retainer ring 12. TJ housing |
13. Housing
circlip |
Dynamic Damper Repair procedures
Replacement
1.
Remove the front driveshaft.
(Refer to Driveshaft Assembly - “Front Driveshaft”)
2.
Remove the TJ joint asse ...
BJ Boot Repair procedures
Replacement
1.
Remove the front driveshaft.
(Refer to Driveshaft Assembly - “Front Driveshaft”)
2.
Remove the TJ joint asse ...
