Kia Cee'd: Blind Spot Detection system / Blind Spot Detection Unit" Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Blind Spot Detection system / Blind Spot Detection Unit" Schematic diagrams

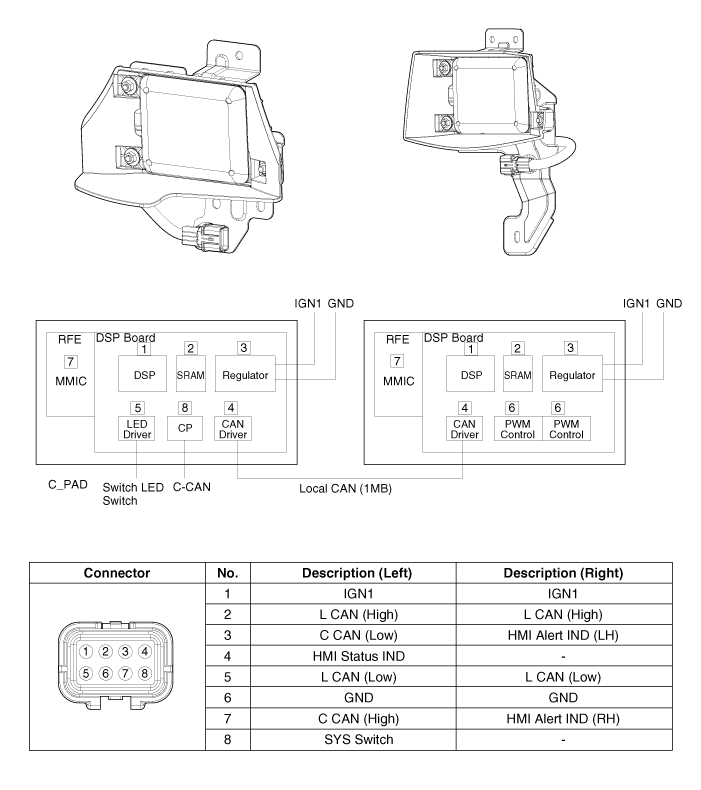

| Circuit Diagram |
Repair procedures
Diagnosis With GDS
1.
BSD system defects can be quickly diagnosed with the GDS. GDS operates
actuator quickly to monitor, input/output value and self diagnosis.
...
Blind Spot Detection Unit" Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the rear bumper cover.
(Refer to Body - "Rear Bumper Co ...
