Kia Cee'd: LCD display warnings and indicators (instrument panel display) / Calendar / Clock / Outside ambient Temperature

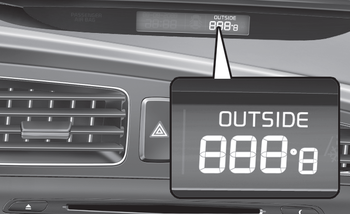

The monitor will display the outside ambient temperature, date and time.

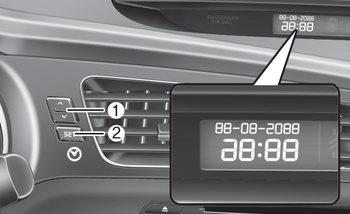

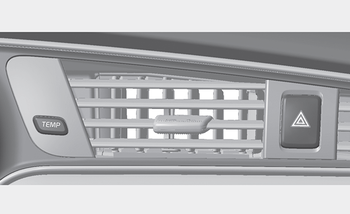

To change the date, time or temperature unit(°C ↔ °F), press the SET(2) or Temp button for more than 1 seconds.

Then you will enter the set-up mode and mode changes in the following order as you press the SET (2) button less than 1 second.

HOUR → MINUTE → YEAR → MONTH → DAY → 12H/24H → TEMPERATURE UNIT CHANGE → Escape set-up mode

Press the SET (2) button less than 1 second to select the mode and set the data using the UP (1, ) and DOWN (1, ) button while the selected setting mode blinks.

To cancel the SET UP mode, do one of the following :

- Press the SET button less than 1 second in set-up temperature unit change mode
- Press the SET button more than 1 second in any set-up mode
- After 15 seconds without any key press
- Ignition is On or OFF in Set-up mode
- Battery is disconnected

LCD display warnings and indicators (instrument panel display)
...
Door and tailgate open display
The monitor will display the corresponding door or tailgate that is not closed securely. ...
