Kia Cee'd: Ignition Lock Switch / Clutch Pedal Components and components location
Kia Cee'd JD Service Manual / Clutch System / Ignition Lock Switch / Clutch Pedal Components and components location

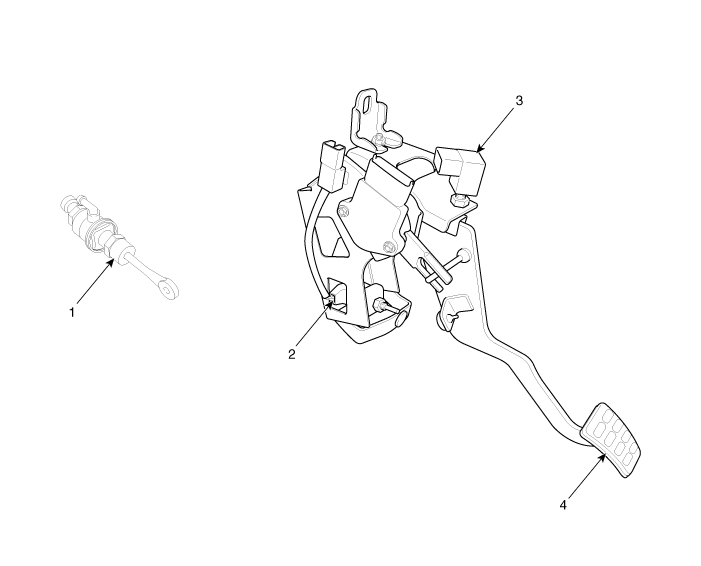

Components
1. Master cylinder
2. Ignition lock switch
3. Clutch switch
4. Pedal pad
Repair procedures
Inspection
Signal Circuit Inspection
1.
Check ignition lock switch pull-up voltage
(1)
IG KEY "OFF", ENGINE "OFF&q ...
Clutch Pedal Repair procedures
Removal
1.
Remove the battery and battery tray.
G 1.6 MPI (Refer to Engine Electrical System - "Battery")
G 1.4 MPI (Refer to Engine Electr ...
