Kia Cee'd: Clutch Cover And Disc / Components and components location
Kia Cee'd JD Service Manual / Clutch System / Clutch Cover And Disc / Components and components location

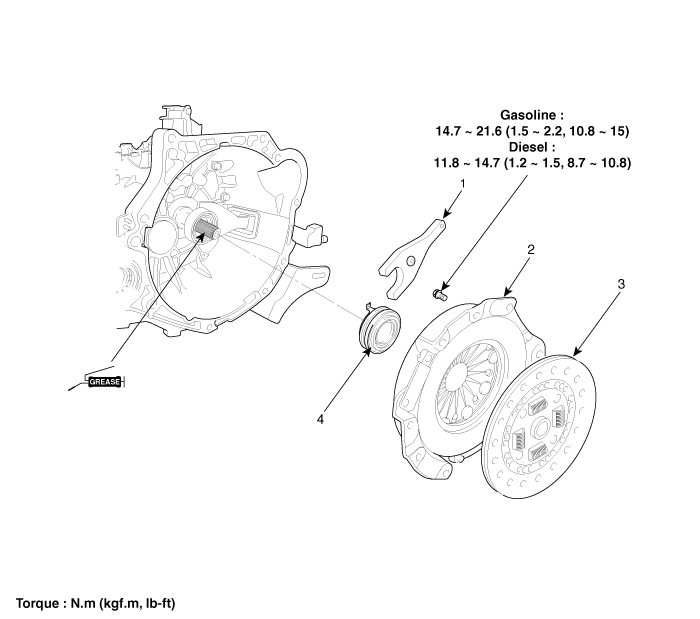

| Components |
| 1. Clutch release fork 2. Clutch cover assembly |
3. Clutch disk assembly 4. Clutch release bearing |
Repair procedures
Removal
1.
Remove the transaxle assembly.
G 1.6 MPI (Refer to Manual Transaxle System - " Manual Transaxle")
G 1.4 MPI (Refer to Manual ...
