Kia Cee'd: Electric Power Steering / Components and components location
Kia Cee'd JD Service Manual / Steering System / Electric Power Steering / Components and components location

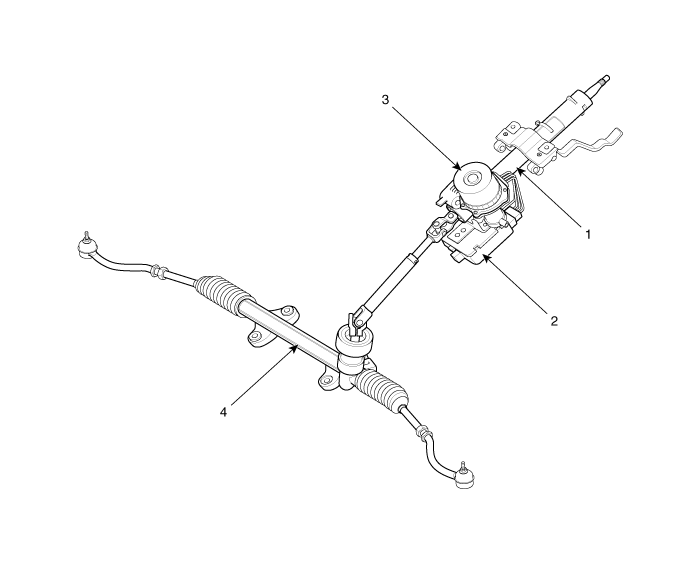

| Components |
| 1. Steering
column shaft 2. ECU |
3. Motor
4. Steering gear box |
