Kia Cee'd: Electric Power Steering / Schematic diagrams
| Schematic Diagrams |

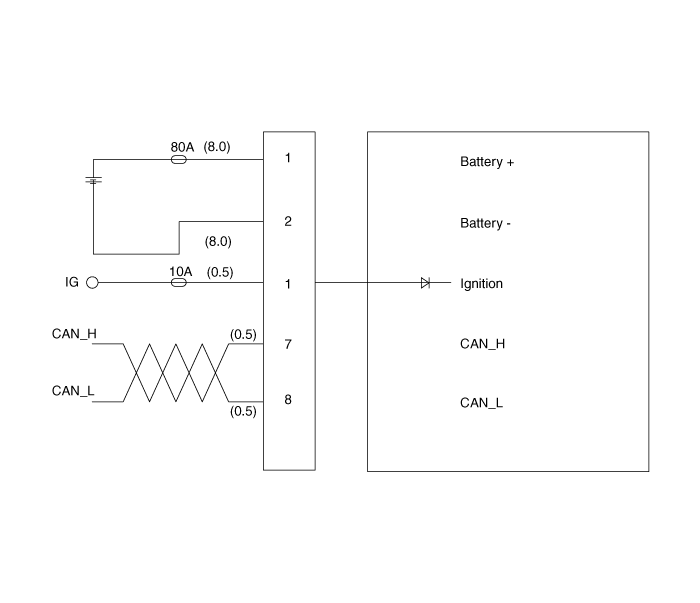

MDPS Circuit Diagram

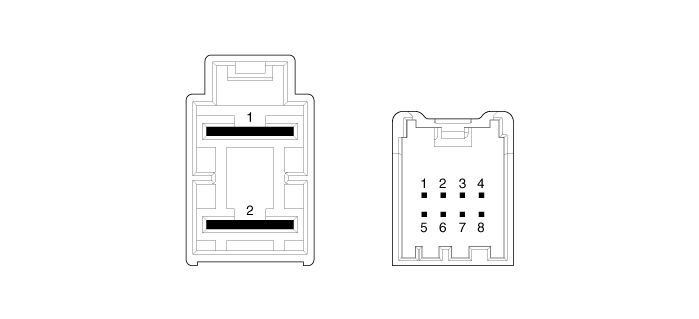

Harness Connector
|
Connector |
Pin no |
Pin name |
|
Battery |
1 |
Battery + |
|
2 |
Battery - |
|
|
Vehicle signal |
1 |
Igntion |
|
2 |
- |
|
|
3 |
- |
|
|
4 |
- |
|
|
5 |
- |
|
|
6 |
- |
|
|
7 |
CAN_High |
|
|
8 |
CAN_Low |
Components and components location
Components
1. Steering
column shaft
2. ECU
3. Motor
4. Steering gear box
...
Repair procedures
General Inspection
After or before servicing the EPS system, perform the troubleshooting and test
procedure as follows. Compare the system condition with normal condition in
the ...
