Kia Cee'd: Restraint / Components and components location
Kia Cee'd JD Service Manual / Restraint / Components and components location

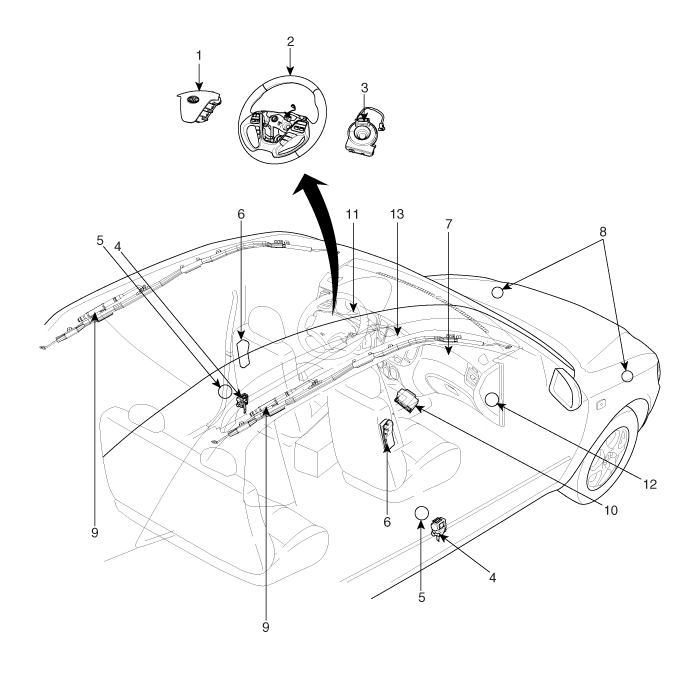

| Components [LHD] |
| 1. Driver Airbag (DAB)
2. Steering Wheel 3. Clock Spring 4. Seat Belt Pretensioner (BPT) 5. Side Impact Sensor (SIS) 6. Side Airbag (SAB) 7. Passenger Airbag (PAB) |
8. Front Impact Sensor
(FIS) 9. Curtain Airbag (CAB) 10. Supplemental Restraint System Control Module(SRSCM) 11. Airbag Warning Lamp 12. PAB ON/OFF switch 13. PAB ON/OFF lamp |

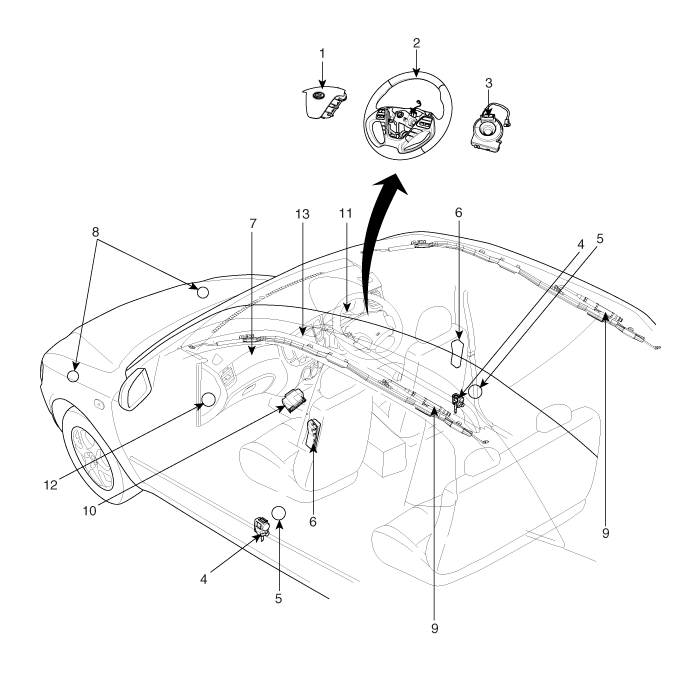

| Components [RHD] |
| 1. Driver Airbag (DAB)
2. Steering Wheel 3. Clock Spring 4. Seat Belt Pretensioner (BPT) 5. Side Impact Sensor (SIS) 6. Side Airbag (SAB) 7. Passenger Airbag (PAB) |
8. Front Impact Sensor
(FIS) 9. Curtain Airbag (CAB) 10. Supplemental Restraint System Control Module(SRSCM) 11. Airbag Warning Lamp 12. PAB ON/OFF switch 13. PAB ON/OFF lamp |
| Components Location |

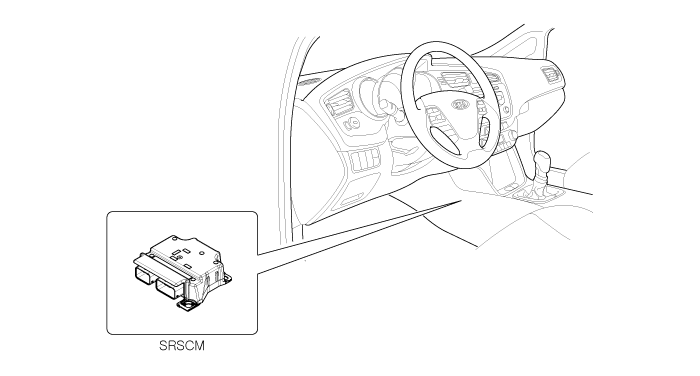

| Supplemental Restraint System Control Module (SRSCM) |

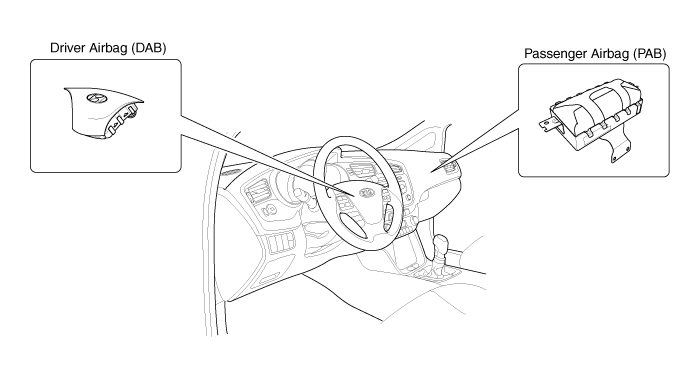

| Driver Airbag (DAB) / Passenger Airbag (PAB) |

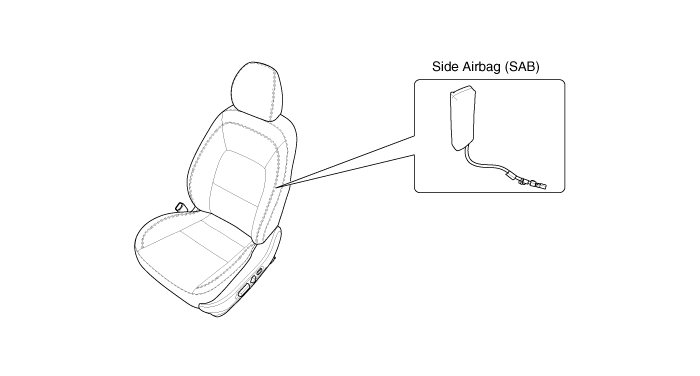

| Side Airbag (SAB) |

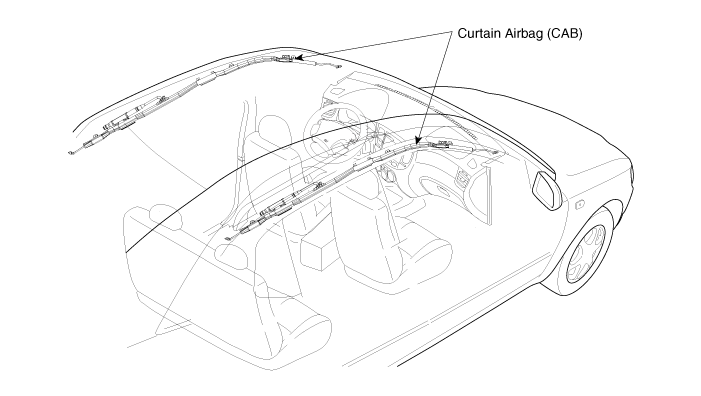

| Curtain Airbag (CAB) |

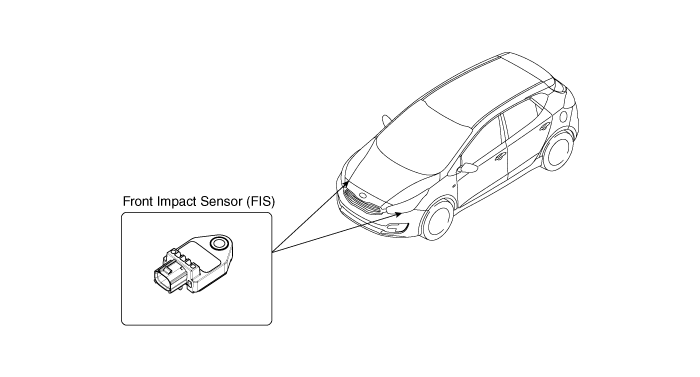

| Front Impact Sensor (FIS) |

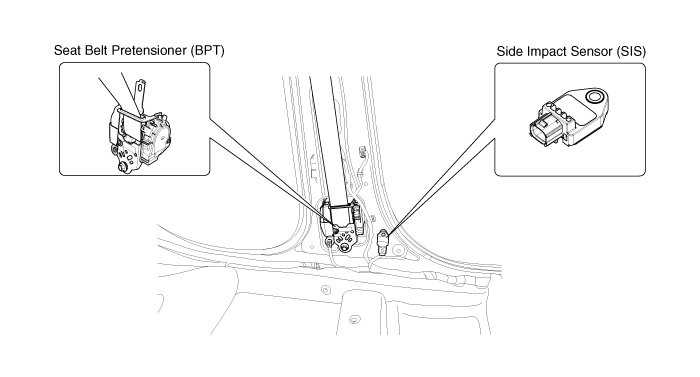

| Side Impact Sensor (SIS)/ Seat Belt Pretensioner (BPT) |
Repair procedures
Component Replacement After
Deployment
Before doing any SRS repairs, use the GDS to check for DTCs. Refer to ...
SRSCM
...
