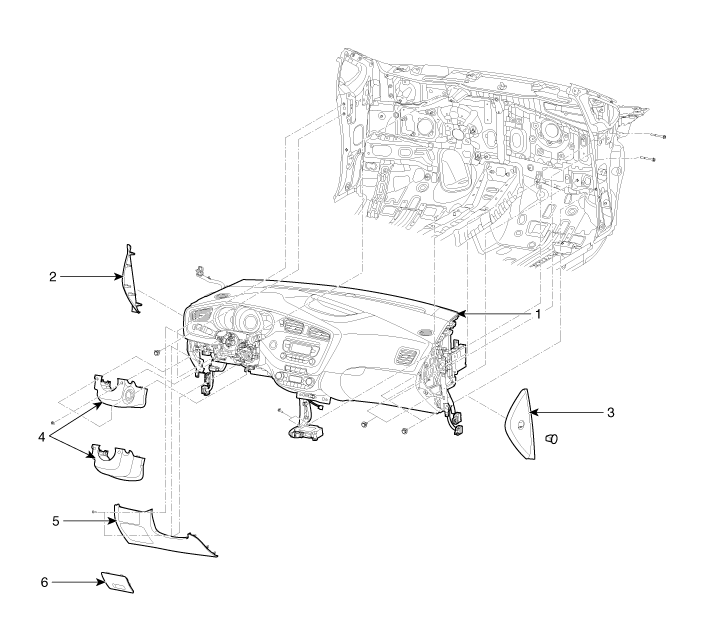

Components (1)

1. Main crash pad assembly
2. Crash pad side cover [LH]
3. Crash pad side cover [RH]

4. Steering column lower shroud panel
5. Crash pad lower panel
6. Fuse box cover

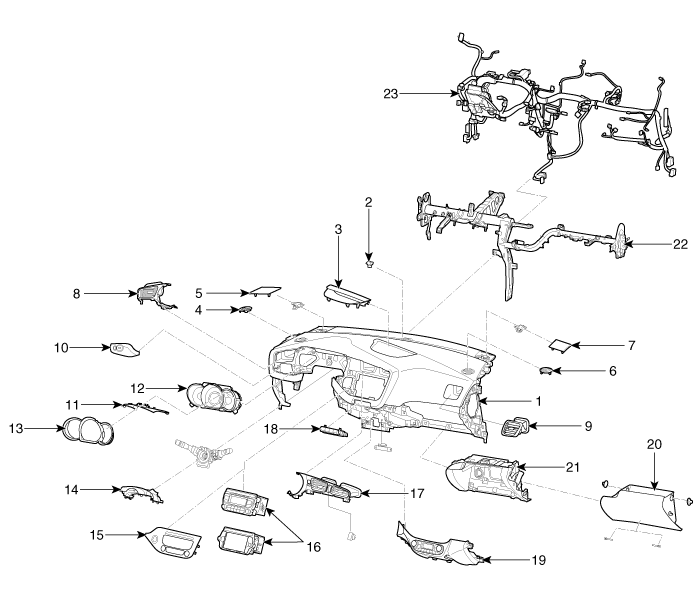

Components (2)

1. Main crash pad assembly
2. Photo sensor
3. Multi display facia panel
4. Side def nozzle [LH]
5. Side speaker grill [LH]
6. Side def nozzle [RH]
7. Side speaker grill [RH]
8. Side airvent duct [LH]
9. Side airvent duct [RH]
10. Crash pad garnish [LH]
11. Cluster fascia upper panel
12. Instrument cluster assembly

13. Cluster fascia cylinder panel
14. Steering column upper shroud panel
15. Center fascia panel
16. Audio assembly
17. Center airvent duct
18. Center swtich
19. Crash pad center lower panel
20. Glove box
21. Glove box housing
22. Cowl cross bar assembly
23. Crash pad main wiring harness

Crash Pad

...

Cluster Fascia Panel Components and components location

Component Location 1. Cluster fascia panel ...
