Kia Cee'd: Roof Trim / Components and components location
Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Roof Trim / Components and components location

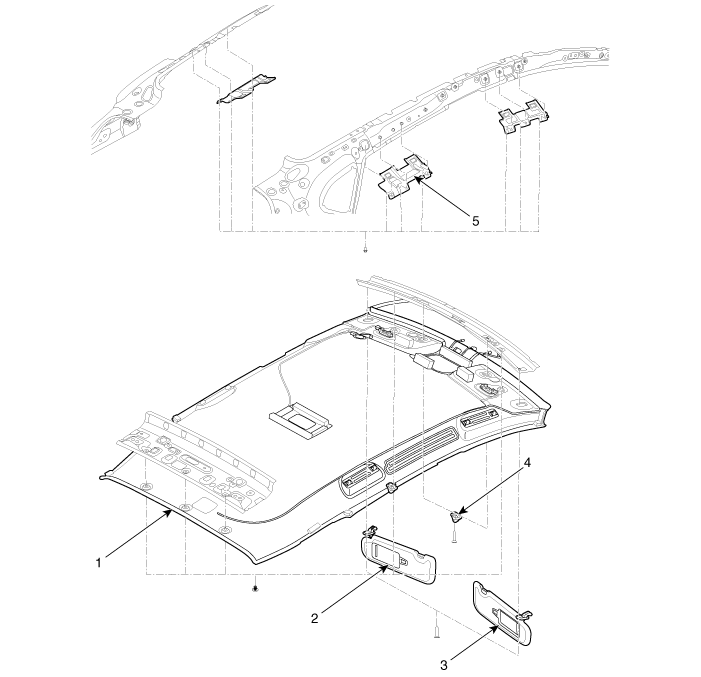

| Components (1) |
| [General Type] |
| (5Door) |
| 1. Roof trim 2. Sunvisor [LH] 3. Sunvisor [RH] |
4. Retainer 5. Assist handle bracket |

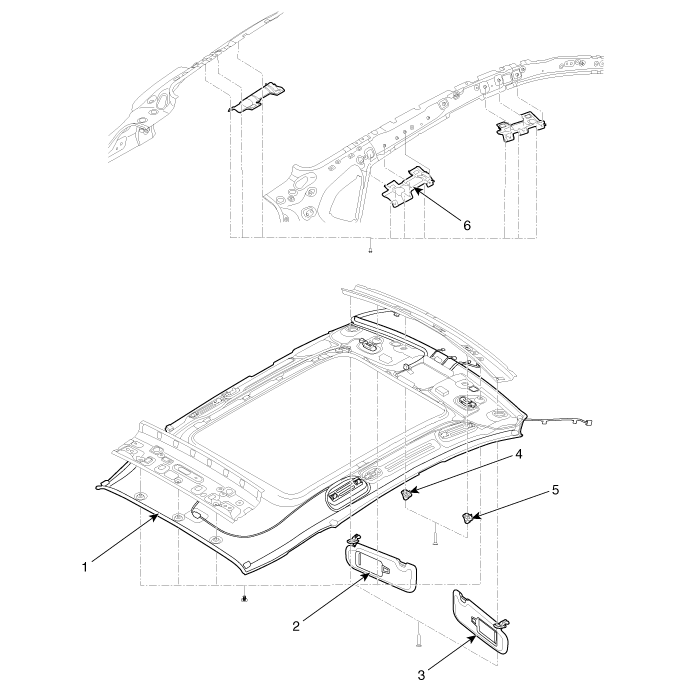

| Components (2) |
| [Panoramaroof Type] |
| (5Door) |
| 1. Roof trim 2. Sunvisor [LH] 3. Sunvisor [RH] |
4. Retainer [LH] 5. Retainer [RH] 6. Assist handle bracket |

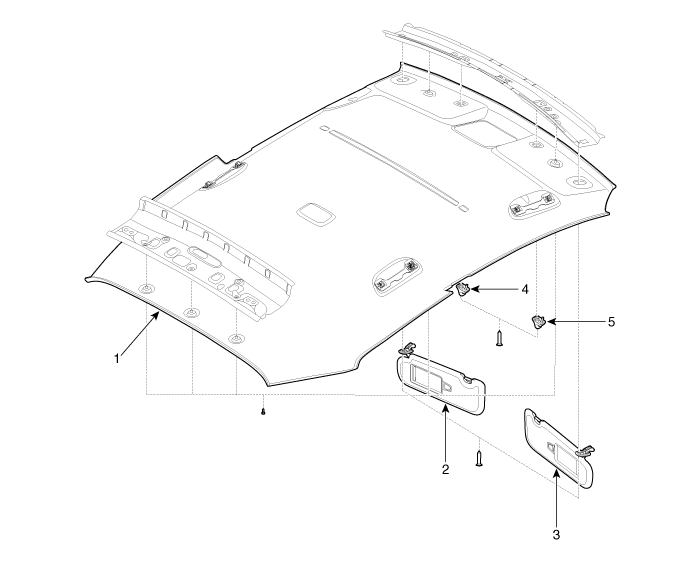

| Components (3) |
| [General Type] |
| (3Door) |
| 1. Roof trim 2. Sunvisor [LH] 3. Sunvisor [RH] |
4. Retainer [LH] 5. Retainer [RH] |

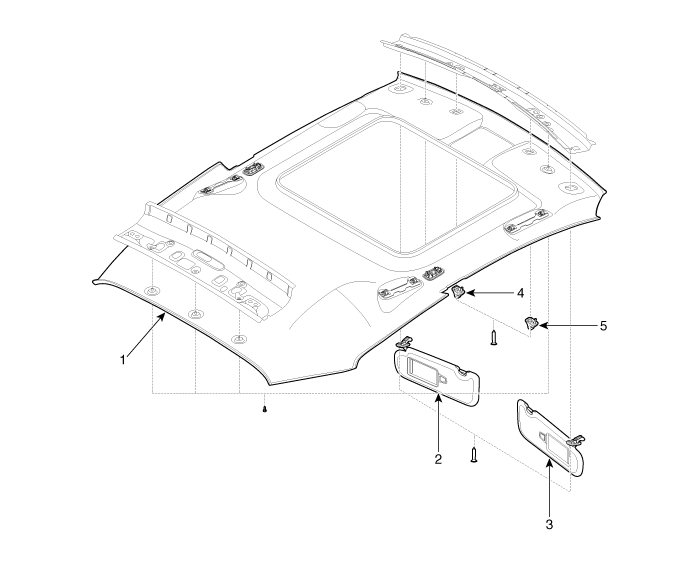

| Components (4) |
| [Panoramaroof Type] |
| (3Door) |
| 1. Roof trim 2. Sunvisor [LH] 3. Sunvisor [RH] |
4. Retainer [LH] 5. Retainer [RH] |
Roof Trim
...
Sunvisor Components and components location
Component Location
1. Sunvisor
...
