Kia Cee'd: Power Door Locks / Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Power Door Locks / Components and components location

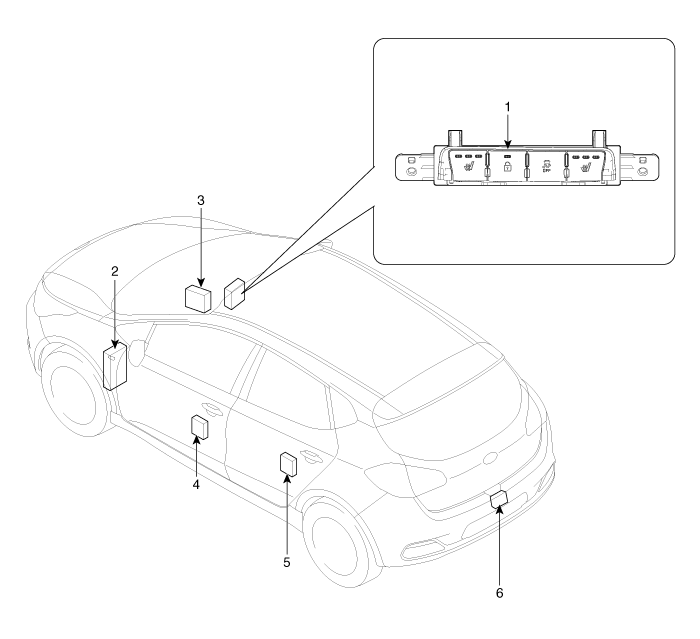

| Component Location |
| 1. Door lock switch 2. SJB (Smart Junction Box) 3. BCM (Body Control Module) |
4. Front door lock actuator
5. Rear door lock actuator 6. Tailgate open actuator |
