Kia Cee'd: Rear Seat / Components and components location
Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Rear Seat / Components and components location
| Components (1) |
| [Rear seat back] |
| (5Door) |

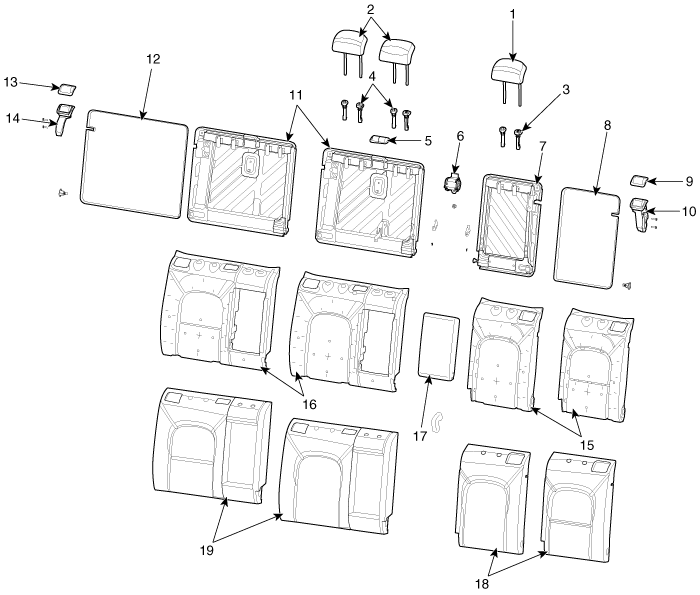

| 1. Rear seat headrest [LH]
2. Rear seat headrest [RH] 3. Rear seat headrest guide [LH] 4. Rear seat headrest guide [RH] 5. Rear seat belt outlet cover 6. Rear center seat belt retractor 7. Rear seat back structure [LH] 8. Rear seat back panel carpet [LH] 9. Rear seat latch cover [LH] 10. Rear seat latch assembly [LH] |
11. Rear seat back structure
[RH] 12. Rear seat back panel carpet [RH] 13. Rear seat latch cover [RH] 14. Rear seat latch assembly [RH] 15. Rear seat back pad [LH] 16. Rear seat back pad [RH] 17. Rear seat armrest assembly 18. Rear seat back cover [LH] 19. Rear seat back cover [RH] |
| Components (2) |
| [Rear seat cushion] |
| (5Door) |

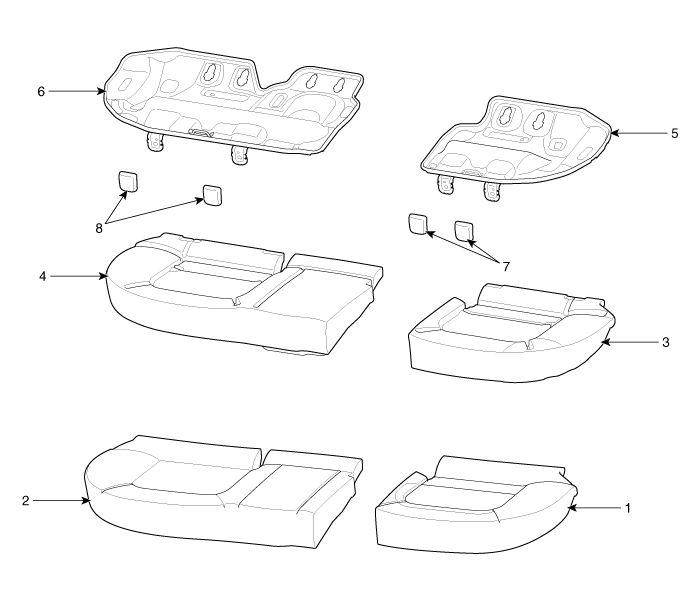

| 1. Rear seat cushion cover [LH]
2. Rear seat cushion cover [RH] 3. Rear seat cushion pad [LH] 4. Rear seat cushion pad [RH] |
5. Rear seat cushion frame [LH]
6. Rear seat cushion frame [RH] 7. Rear seat cushion mounting cover [LH] 8. Rear seat cushion mounting cover [RH] |
| Components (3) |
| [Rear seat back] |
| (3Door) |
| 1. Rear seat headrest [LH]
2. Rear seat headrest [RH] 3. Rear seat headrest guide [LH] 4. Rear seat headrest guide [RH] 5. Rear seat belt outlet cover 6. Rear center seat belt retractor 7. Rear seat back structure [LH] 8. Rear seat back panel carpet [LH] 9. Rear seat latch cover [LH] |
10. Rear seat latch assembly
[LH] 11. Rear seat back structure [RH] 12. Rear seat back panel carpet [RH] 13. Rear seat latch cover [RH] 14. Rear seat latch assembly [RH] 15. Rear seat back pad [LH] 16. Rear seat back pad [RH] 17. Rear seat back cover [LH] 18. Rear seat back cover [RH] |
| Components (4) |
| [Rear seat cushion] |
| (3Door) |

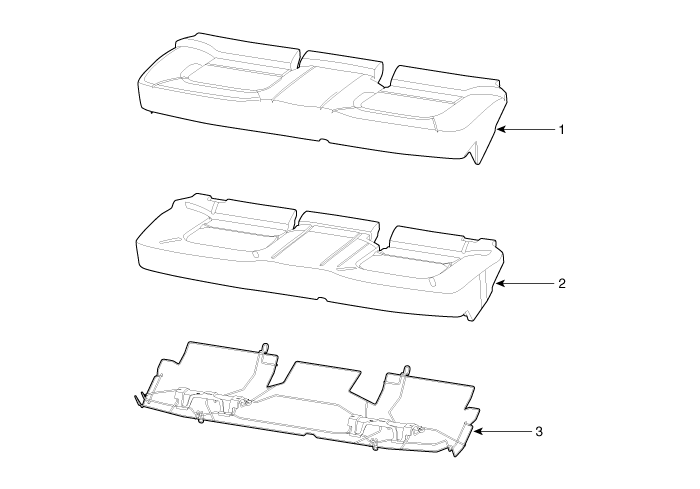

| 1. Rear seat cushion cover
2. Rear seat cushion pad |
3. Rear seat cushion frame assembly
|
Rear Seat
...
Rear Seat Assembly Components and components location
Component Location
1. Rear seat cushion assembly
2. Rear seat back assembly
...
