Kia Cee'd: Multifunction Switch / Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Multifunction Switch / Components and components location

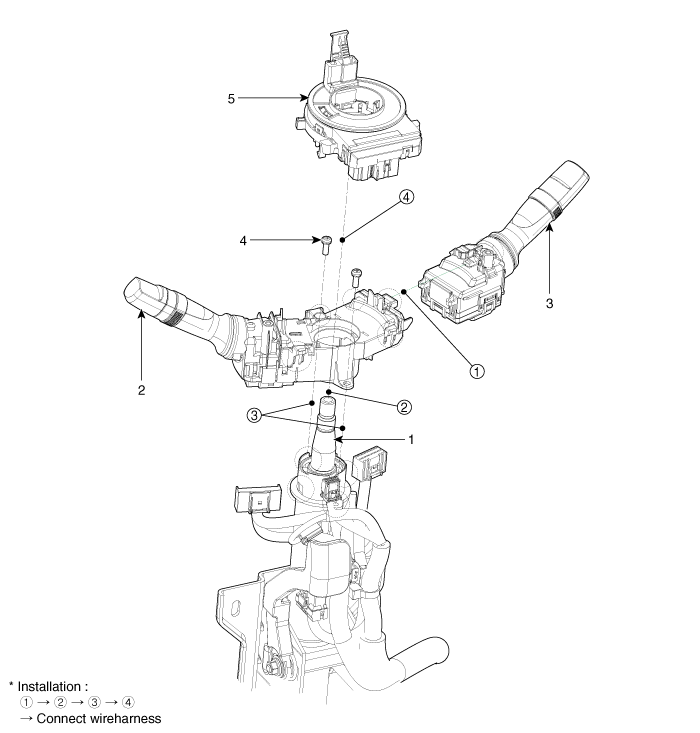

| Components (1) |
| 1. Steering column 2. Lighting switch 3. Wiper switch |
4. Screw 5. Clock spring |

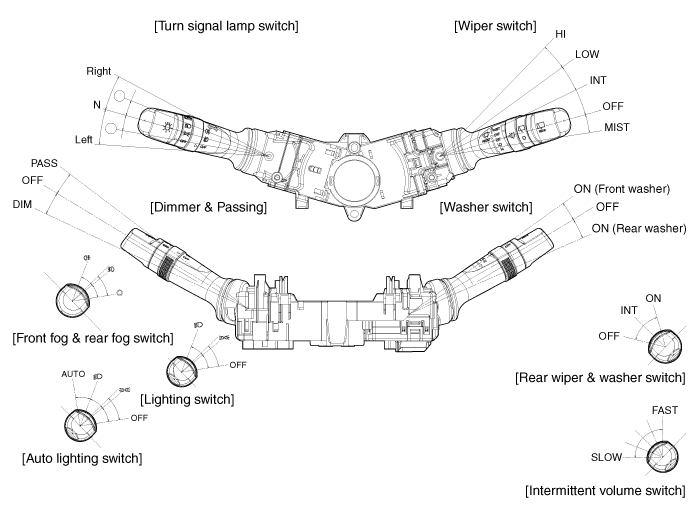

| Components (2) |
Specifications
Specifications
Items
Specifications
Rated voltage
DC 12V
Operating temperature range
-22 ~ +17 ...
Repair procedures
Inspection
Lighting Switch Inspection
With the multifunction switch in each position, make sure that continuity exists
between the terminals below. If continuity is not as speci ...
