Kia Cee'd JD Service Manual / Body Electrical System / Fuses and Relays / Components and components location

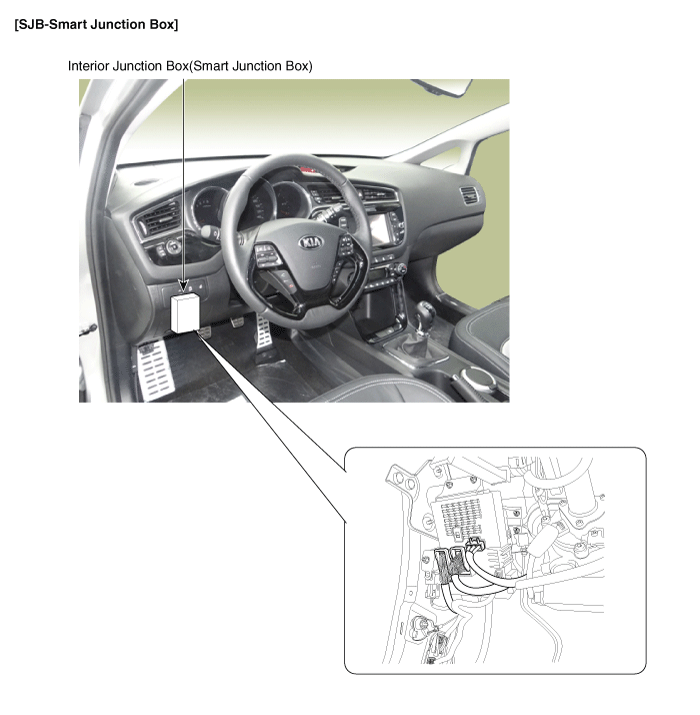

| Component Location |
| 1. EMS box assembly 2. Cooling fan(Low) relay 3. Cooling fan(High) relay 4. ESS relay 5. Blower relay |
6. Rear defogger relay
7. HAC relay 8. SSB4(IG2) relay 9. Front wiper relay 10. SSB3(IG1) relay |
11. Start relay 12. SSB2(ACC) relay 13. PTC(Gasoline) / Fuel heater relay(Diesel) |
