Kia Cee'd: Fuses and Relays / Relay Box (Engine Compartment) Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Fuses and Relays / Relay Box (Engine Compartment) Components and components location
| Components |
Components and components location

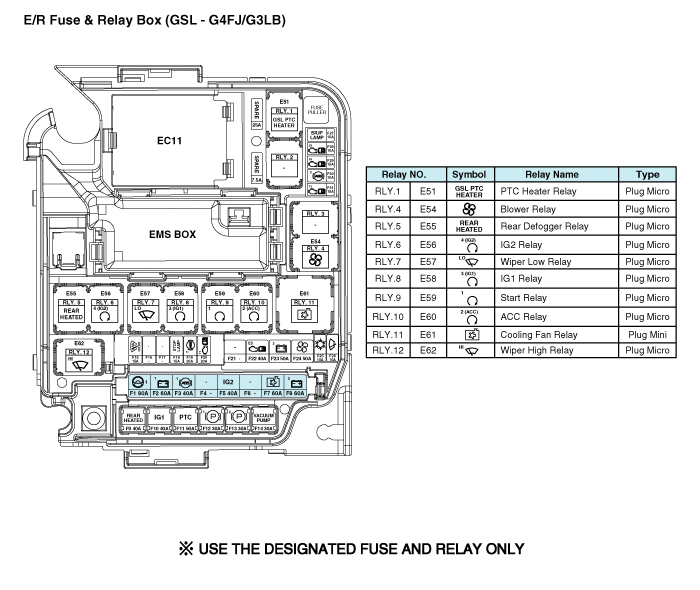

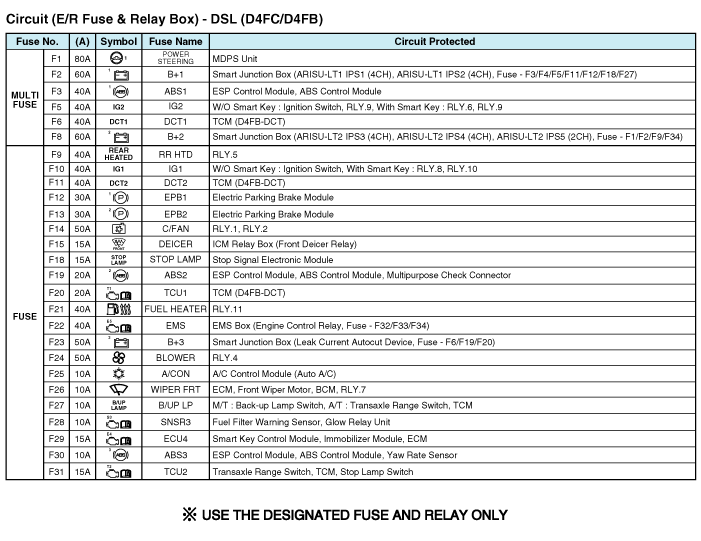

Component Location

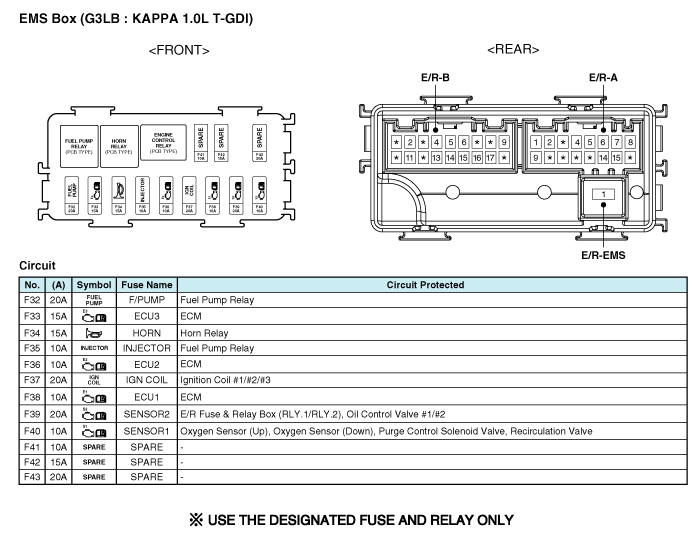

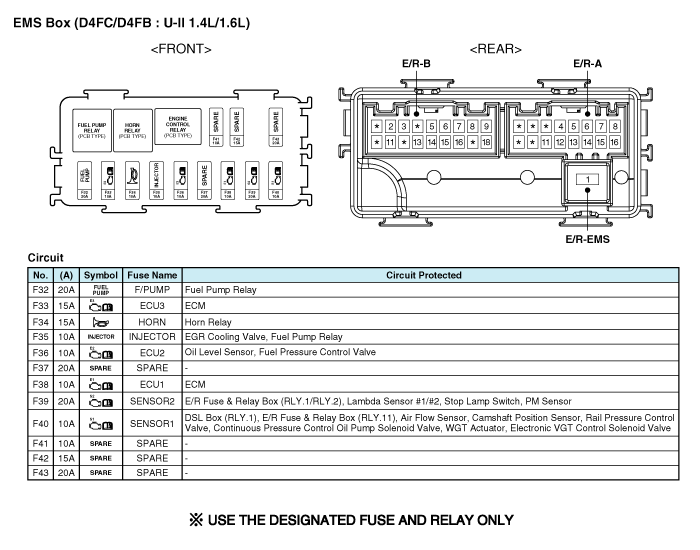

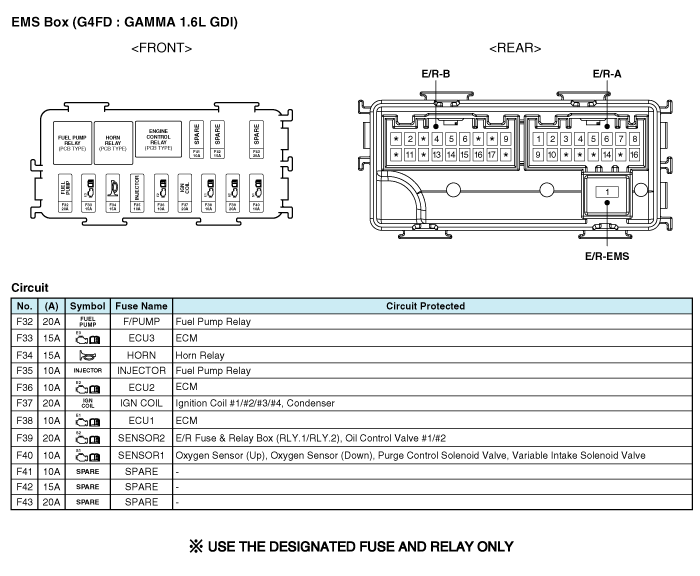

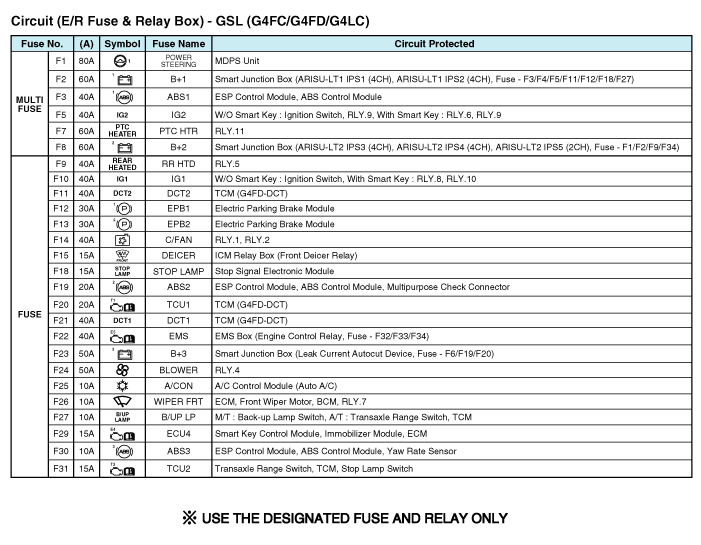

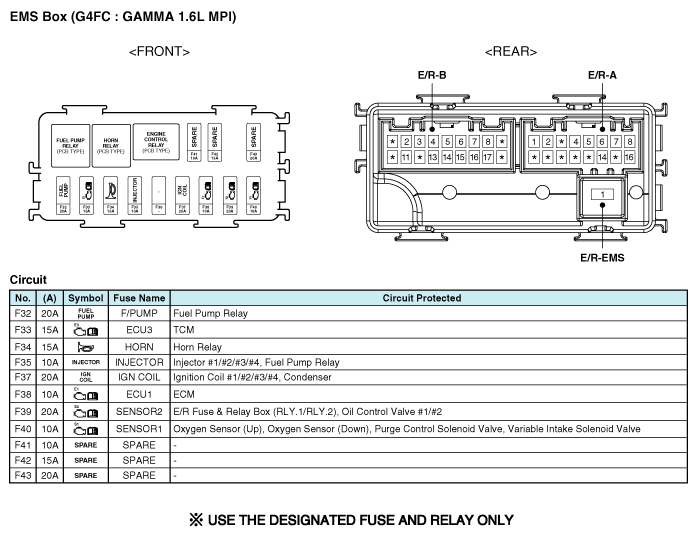

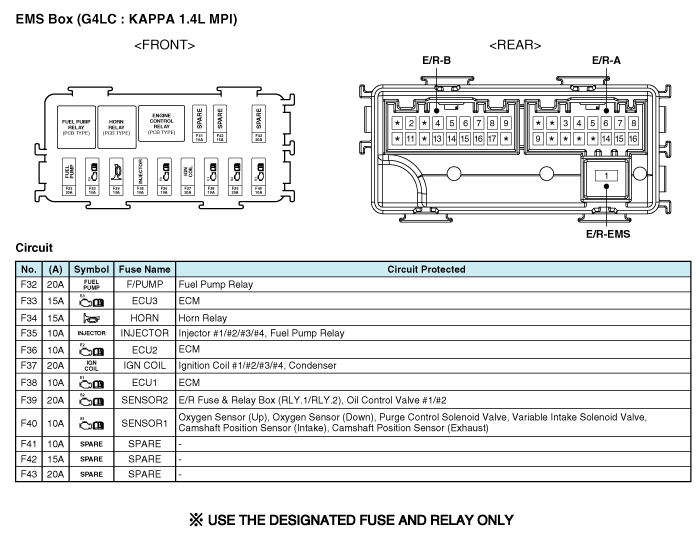

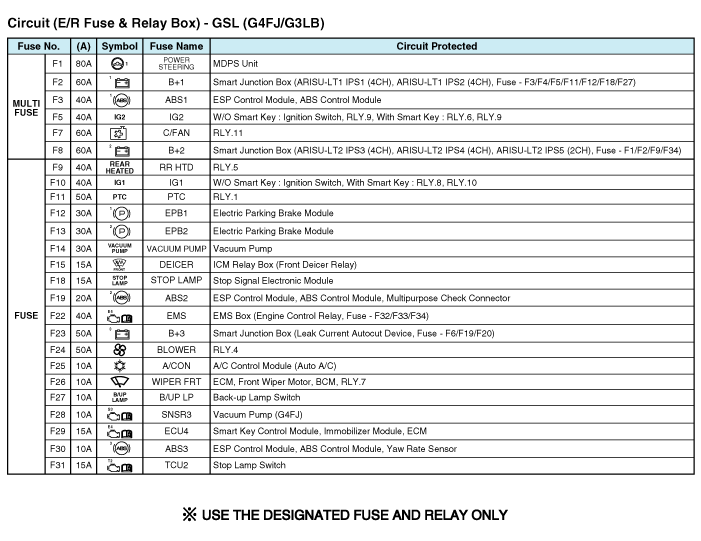

1. EMS box assembly

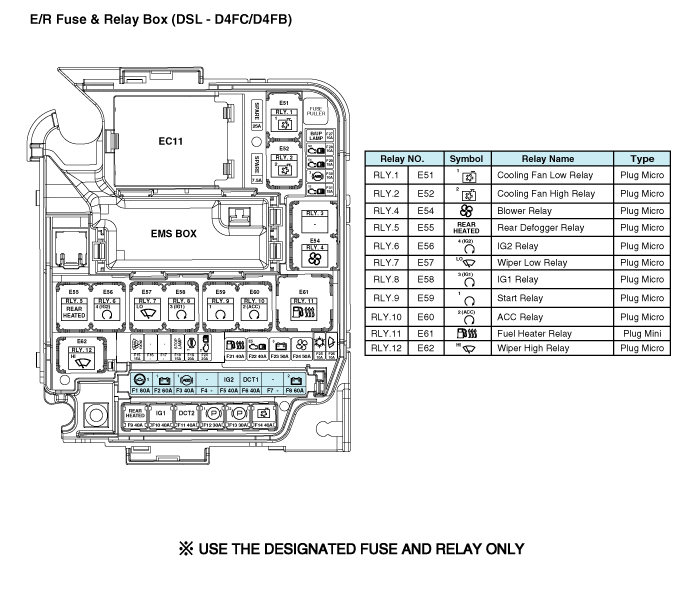

2. Cooling fan(Low) relay
3. Cooling fan(High) relay
4. ESS relay
5. Blower relay
6. Rear defogger rela ...
Relay Box (Engine Compartment) Repair procedures
Inspection
Power Relay Test (Type A)
–
Do not use pliers.
...
