Kia Cee'd: Hands Free System / Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Hands Free System / Components and components location

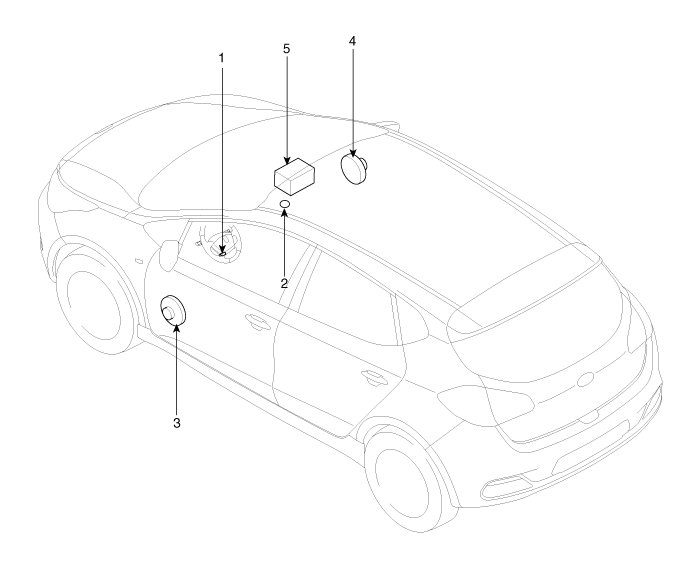

| Components |
| 1. Hands free call switch 2. Mic 3. Front left speaker |
4. Front right speaker 5. Audio head unit (hands free control) |
| ※ There is no hands free jack.
This system supports Bluetooth(wireless system). |
