Kia Cee'd: Head Lamp Leveling Device / Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Head Lamp Leveling Device / Components and components location

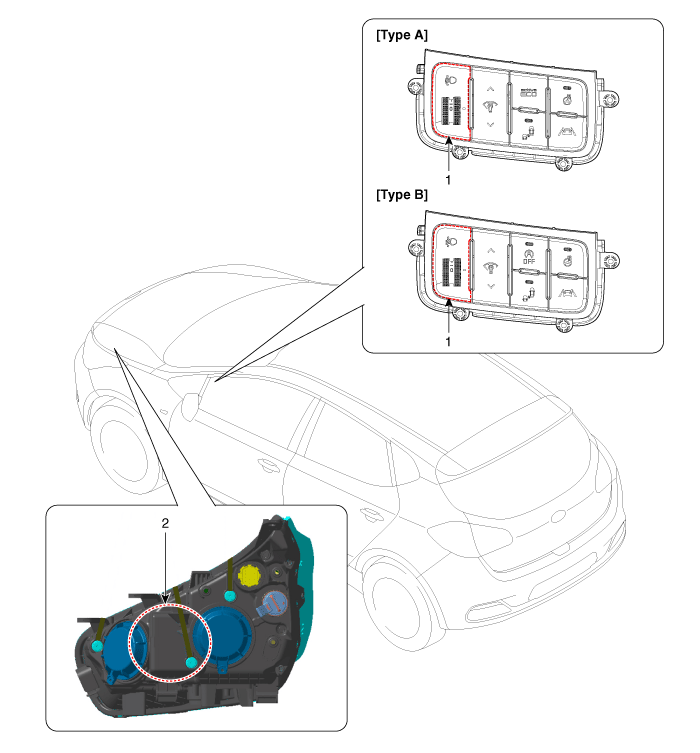

| Component Location |
| 1. Head lamp leveling switch
|
2. Head lamp leveling actuator
(Built into the head lamp assembly) |
Schematic diagrams
Circuit Diagram
...
