Kia Cee'd: Button Engine Start System / Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Button Engine Start System / Components and components location

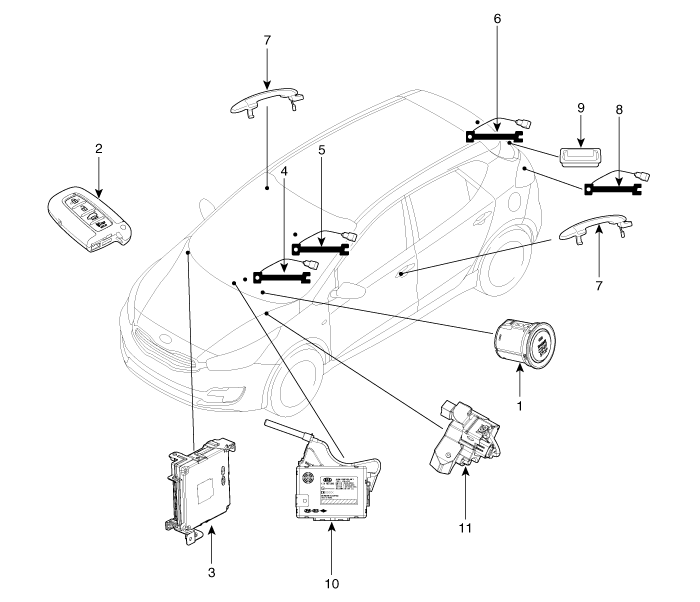

| Component Location |
| 1. Start Stop Button (SSB)
2. FOB key 3. Smart key unit 4. Interior antenna 1 5. Interior antenna 2 6. Trunk antenna |
7. Door handle & door antenna
8. Bumper antenna 9. Tailgate open switch 10. BCM (Body Control Module) 11. ESCL (Electrical Steering Column Lock) |
Schematic diagrams
Circuit Diagram
...
