Kia Cee'd: Engine Control System / Components and components location

Kia Cee'd JD Service Manual / Fuel System / Engine Control System / Components and components location

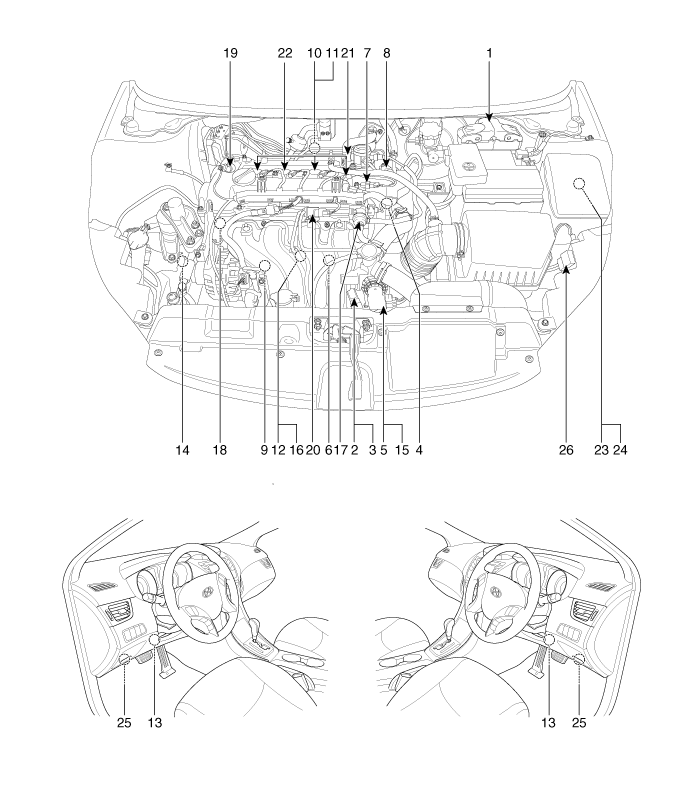

Components Location


1. Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)
4. Engine Coolant Temperature Sensor (ECTS)
5. Throttle Position Sensor (TPS) [integrated into ETC Module]
6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
9. Knock Sensor (KS)
10. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
11. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
12. Rail Pressure Sensor (RPS)
13. Accelerator Position Sensor (APS)
14. A/C Pressure Transducer (APT)
15. ETC Motor [integrated into ETC Module]
16. Injector
17. Purge Control Solenoid Valve (PCSV)
18. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
19. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
20. Variable Intake Solenoid (VIS) Valve
21. Fuel Pressure Control Valve (FPCV)
22. Ignition Coil
23. Main Relay
24. Fuel Pump Relay
25. Data Link Connector (DLC) [16-Pin]
26. Multi-Purpose Check Connector [20-Pin]



1. Engine Control Module (ECM)
2. Manifold Absolute Pressure Sensor (MAPS)
3. Intake Air Temperature Sensor (IATS)

4. Engine Coolant Temperature Sensor (ECTS)
5. Throttle Position Sensor (TPS)
15. ETC Motor

6. Crankshaft Position Sensor (CKPS)
7. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
8. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]

9. Knock Sensor (KS)
10. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 1]

11. Heated Oxygen Sensor (HO2S) [Bank 1/Sensor 2]
12. Rail Pressure Sensor (RPS)
16. Injector

13. Accelerator Position Sensor (APS)
14. A/C Pressure Transducer (APT)

17. Purge Control Solenoid Valve (PCSV)
18. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]

19. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
20. Variable Intake Solenoid (VIS) Valve

21. Fuel Pressure Control Valve (FPCV)
22. Ignition Coil

23. Main Relay
24. Fuel Pump Relay
25. Data Link Connector (DLC) [16-Pin]

26. Multi-Purpose Check Connector [20-Pin]


Description and operation
OBD-II review 1. Overview The California Air Resources Board (CARB) began regulation of On Board Diagnostics (OBD) for vehicles sold in California beginning with the 1988 model ...
Engine Control Module (ECM) Schematic diagrams
ECM (Engine Control Module) ECM Harness Connector ECM Terminal Function Connector [C200-A]   Pin No. Description ...
