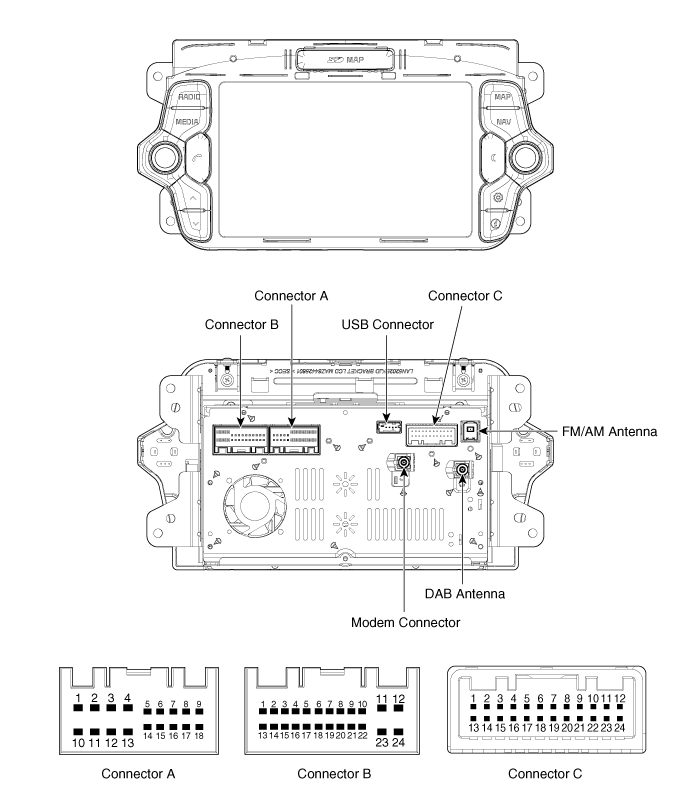

Components

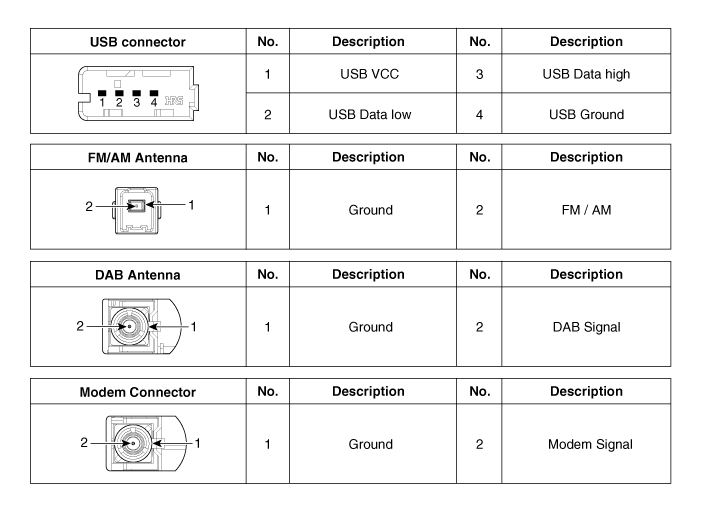

Connector Pin Information

No.	Connector A	Connector B	Connector C
1	Rear left speaker (+)	MM CAN High	-
2	Front left speaker (+)	-	-
3	Front right speaker (+)	-	-
4	Rear right speaker (+)	Steering wheel key	-
5	-	-
6	-	-	-
7	-	AUX video	-
8	Illumination (+)	AUX Audio R	-
9	Reverse	AUX Audio ground	-
10	Rear left speaker (-)	MIC Signal (+)	-
11	Front left speaker (-)	Battery (+)	-
12	Front right speaker (-)	Battery (+)	-
13	Rear right speaker (-)	MM CAN Low	-
14	-	Auto light	-
15	-	P Position	-
16	Door unlock status	Speed	-
17	Illumination (-)	Steering wheel key ground	-
18	ANT power	ACC	-
19		AUX Video ground	-
20		AUX Detect	-
21		AUX Audio left	Camera shield ground
22		MIC Signal (-)	Camera vidieo ground
23		Ground	Camera vidieo
24		Ground	Camera power

Description and operation

Description Limitations Of The Navigation system GPS Signal Reception State As the GPS satellite frequency is received/transmitted in straight lines, reception may not work ...

AVN Head Unit Repair procedures

Removal AVN Head Unit • Take care not to scratch the center fascia panel and rela ...
