Kia Cee'd: Cruise Control System / Cruise Control Switch Schematic diagrams
Kia Cee'd JD Service Manual / Engine Electrical System / Cruise Control System / Cruise Control Switch Schematic diagrams
| Circuit Diagram |

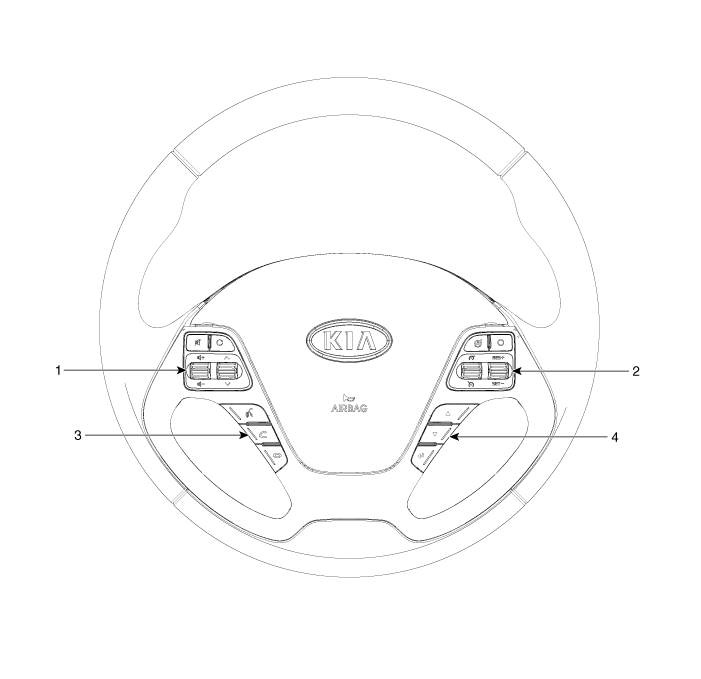

| 1. Remote control switch (Audio)
2. Remote control switch (Cruise) |
3. Blue tooth hands free switch
4. Trip switch |
Troubleshooting
Trouble Symptom Charts
Trouble Symptom 1
Trouble Symptom 2
Trouble symptom
Probable cause
Remedy
...
Cruise Control Switch Repair procedures
Removal
1.
Disconnect the battery (-) terminal.
2.
Remove the air-bag module from the steering wheel.
(Refer to Restraint - " ...
