Kia Cee'd: Driving your vehicle / Cruise Control system

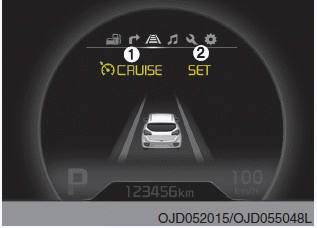

■ Normal vision
■ Supervision
1. Cruise indicator
2. Cruise set indicator
The cruise control system allows you to program the vehicle to maintain a constant speed without pressing the accelerator pedal.
This system is designed to function above approximately 30 km/h (20 mph).
WARNING
- If the cruise control is left on, (cruise indicator light is illuminated), the cruise control can be switched on accidentally. Keep the cruise control system off when the cruise control is not in use, to avoid inadvertently setting a speed.
- Use the cruise control system only when traveling on open highways in good weather.
- Do not use the cruise control when it may not be safe to keep the vehicle at a constant speed, for instance, driving in heavy or varying traffic, or on slippery (rainy, icy or snow-covered) or winding roads or over 6% up-hill or down-hill roads.
- Pay particular attention to the driving conditions whenever using the cruise control system.
- Be careful when driving downhill using the cruise control system, which may increase the vehicle speed.
CAUTION
During cruise-speed driving of a manual transaxle vehicle, do not shift into neutral without depressing the clutch pedal, since the engine will be overrevved. If this happens, depress the clutch pedal or release the cruise control ONOFF switch.
✽ NOTICE
- During normal cruise control operation, when the SET switch is activated or reactivated after applying the brakes, the cruise control will energize after approximately 3 seconds. This delay is normal.
- To activate cruise control, depress the brake pedal at least once after turning the ignition switch to the ON position or starting the engine. This is to check if the brake switch which is important part to cancel cruise control is in normal condition.
- Cruise control switch
- To set cruise control speed
- To increase cruise control set speed
- To decrease the cruising speed
- To temporarily accelerate with the cruise control on
- To cancel cruise control, do one of the following
- To resume cruising speed at more than approximately 30 km/h (20 mph)
- To turn cruise control off, do one of the following
Good braking practices
WARNING
Whenever you leave or park your
vehicle, always set the parking
brake as far as possible and fully
engage the vehicle's transaxle
into the P (Park) position. If the
parking ...

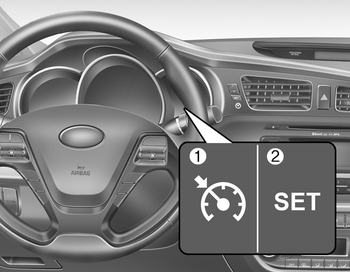

Cruise control switch
O: Cancels cruise control operation.
: Turns cruise control system on
or
off.
RES+: Resumes or increases cruise
control speed.
SET-: Sets or decreases cruise control
speed. ...
