Kia Cee'd JD Service Manual / Body Electrical System / Power Door Locks / Power Door Lock Relay Repair procedures
| Inspection |
Diagnosis With GDS
| 1. |
It will be able to diagnose defects of power door lock with GDS quickly.
GDS can operates actuator forcefully, input/output value monitoring
and self diagnosis.
|
| 2. |
Select model and "BCM".
|
| 3. |
Select the "SJB" to check.
|
| 4. |

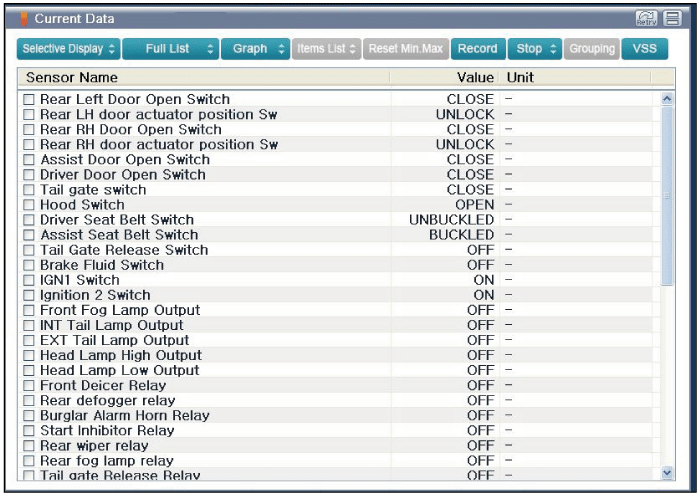

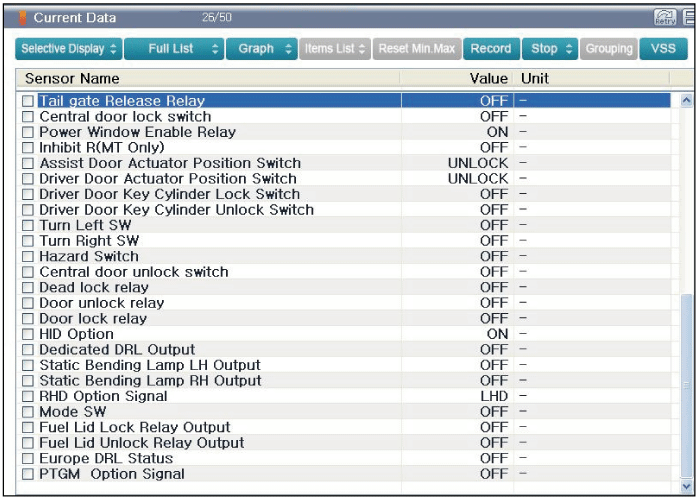

Select "Current data", if you will check current data of power door
lock system. It provides input/output status of SJB.
|
| 5. |
If you will check the power door lock operation forcefully, select "Actuation
test".
|
Power Door Lock Actuators Repair procedures
Inspection
Front Door Lock Module Inspection
1.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
2.
...
Power Door Lock Switch Repair procedures
Inspection
1.
The SJB can be diagnosed by using the GDS. The SJB communicates with
the GDS which then displays inputs and outputs along with codes.
It ...
