Kia Cee'd: Engine Control System / CVVT Oil Control Valve (OCV) Schematic diagrams
Kia Cee'd JD Service Manual / Fuel System / Engine Control System / CVVT Oil Control Valve (OCV) Schematic diagrams

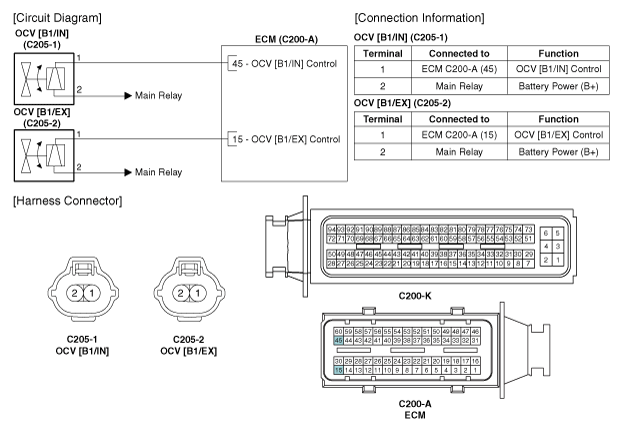

| Circuit Diagram |
CVVT Oil Control Valve (OCV) Specifications
Specification
Item
Specification
Coil Resistance (Ω)
6.9 ~ 7.9 [20°C(68°F)]
...
CVVT Oil Control Valve (OCV) Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the OCV connector.
3.
Measure resistance betwee ...
