Kia Cee'd: Cylinder Block / Cylinder Block Components and components location
Kia Cee'd JD Service Manual / Engine Mechanical System / Cylinder Block / Cylinder Block Components and components location

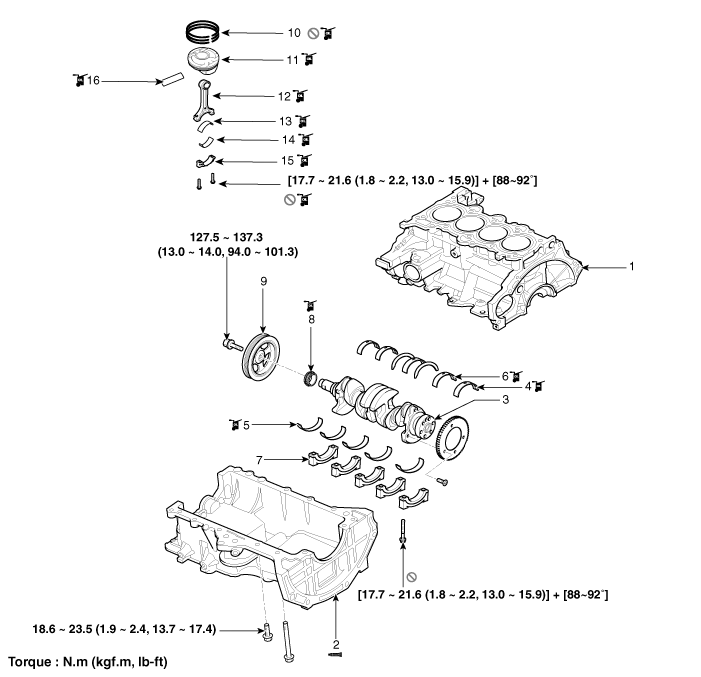

| Components |
|
1. Cylinder block 2. Ladder frame 3. Crank shaft 4. Crank shaft upper bearing 5. Crank shaft lower bearing |
6. Thrust bearing 7. Main bearing cap 8. Crank shaft sproket 9. Crank shaft pulley 10. Piston ring |
11. Piston 12. Connecting rod 13. Connecting rod upper bearing 14. Connecting rod lower bearing 15. Connecting rod bearing cap |
Rear Oil Seal Repair procedures
Removal
1.
Remove the transaxle assembly.
(Refer to Manual Transaxle System - "Manual Transaxle")
2.
MT : Remove the ...
Cylinder Block Repair procedures
Removal
Engine removal is required for this procedure.
(Refer to Engine and transaxle assembly removal in this group)
1.
MT : Remove the flywheel.
( ...
