| Removal |
| 1. |
Turn ignition OFF and disconnect the negative (-) battery cable.
|
| 2. |
Remove the floor console assembly.
(Refer to Body - "Floor console assembly")
|
| 3. |
Disconnect the EPB control unit connector (A).
|
| 4. |
EPB control unit mounting nuts (B) and then remove EPB control unit.
|
| Installation |
| 1. |
Install in the reverse order of removal.
|
| 2. |
After replacing the EPB control unit with a new one, must be performed
the “Variant Coding” procedure.
(Refer to the “Variant coding”)
|
| 3. |
Perform the “G-Sensor Calibration” with GDS.
|
| 4. |
Check that the brake operates normally by pushing the EPB switch more
than 3 times after installing the EPB module.
|
| Variant coding |
| 1. |
Ignition "OFF", connect GDS.
|
| 2. |
Ignition "ON" & Engine "OFF" select vehicle name and EPB system.
|
| 3. |

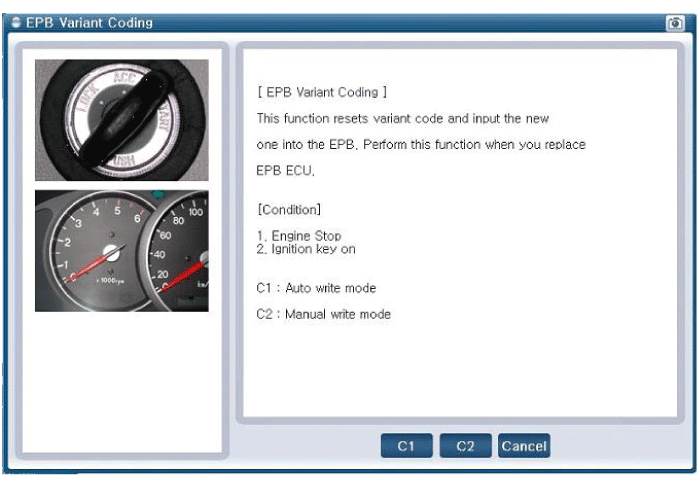

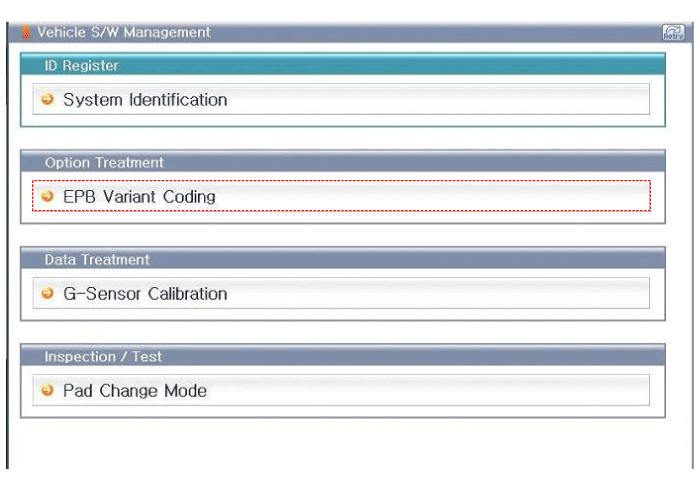

Select EPB Variant coding mode.
|
| 4. |
Perform the "EPB Variant Coding" procedure with GDS.
|
| 5. |
Complete the “Variant Coding” procedure.
|
Electronic Parking Brake (EPB) Schematic diagrams
EPB Circuit Diagram (1)
EPB Circuit Diagram (2)
EPB connector input/output
Pin No.
Function
Pin No.
...
EPB Switch Repair procedures
Remove
1.
Turn ignition OFF and disconnect the negative (-) battery cable.
2.
Remove the floor console upper cover.
(Refer t ...
