Kia Cee'd: Parking Brake System / Electronic Parking Brake (EPB) Schematic diagrams

Kia Cee'd JD Service Manual / Brake System / Parking Brake System / Electronic Parking Brake (EPB) Schematic diagrams

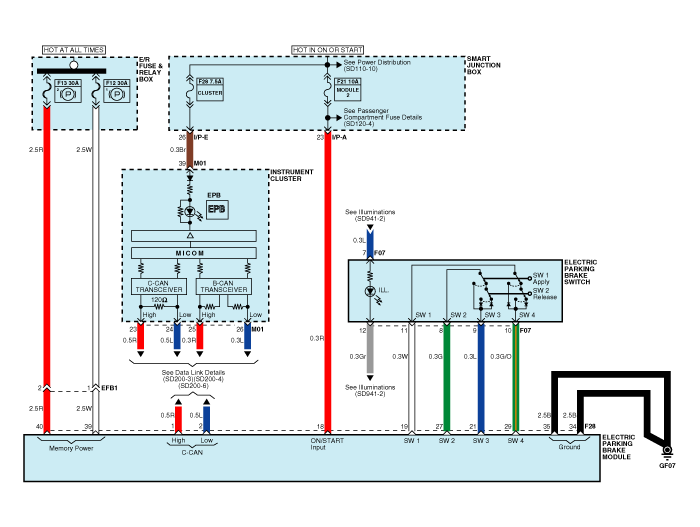

EPB Circuit Diagram (1)

EPB Circuit Diagram (2)

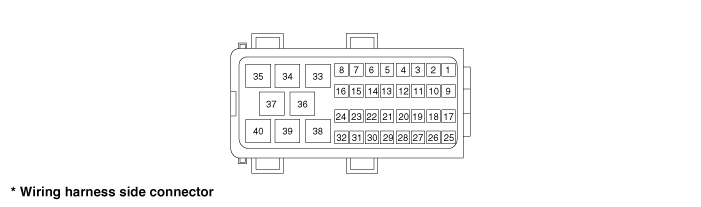

EPB connector input/output

Pin No.	Function	Pin No.	Function
1	CAN_High	21	EPB switch 3
2	CAN_Low	22	-
3	-	23	Clutch ground 1 (MT only)
4	-	24	Output signal 1 (MT only)
5	-	25	-
6	Neutral switch (MT only)	26	-
7	-	27	EPB switch 2
8	Clutch power 2	28	-
9	-	29	EPB switch 4
10	-	30	-
11	-	31	Output signal 2 (MT only)
12	-	32	Clutch ground 2 (MT only)
13	-	33	Rear left caliper motor -
14	-	34	Ground
15	Clutch power 1 (MT only)	35	Ground
16	-	36	Rear right caliper motor -
17	-	37	Rear right caliper motor +
18	Ignition 1	38	Rear left caliper motor +
19	EPB switch 1	39	Rear right motor power
20	-	40	Rear left motor power
