Kia Cee'd: Maintenance / Engine compartment

Kia Cee'd JD Owners Manual / Maintenance / Engine compartment

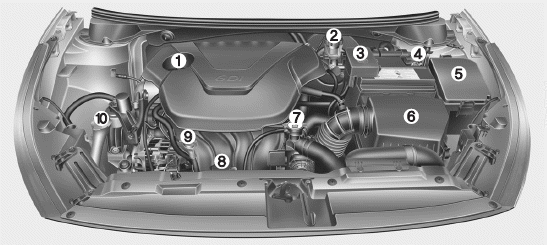

■ Gasoline engine (Gamma 1.6GDI)

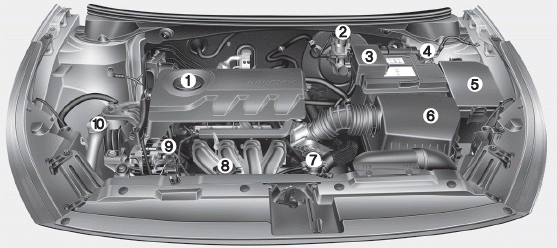

■ Gasoline engine (Gamma 1.6MPI)

1. Engine oil filler cap
2. Brake/clutch fluid reservoir
3. Positive battery terminal
4. Negative battery terminal
5. Fuse box
6. Air cleaner
7. Radiator cap
8. Engine coolant reservoir
9. Engine oil dipstick
10. Windshield washer fluid reservoir

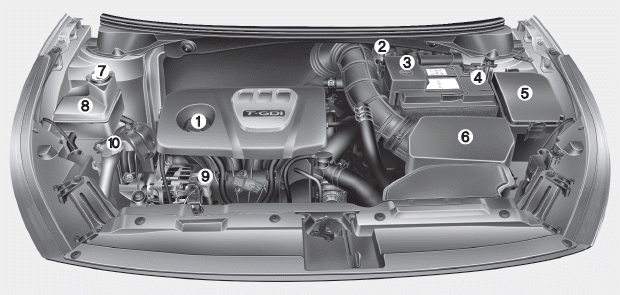

■ Gasoline engine (Gamma 1.6T-GDI)

■ Gasoline Engine (Kappa 1.4MPI)

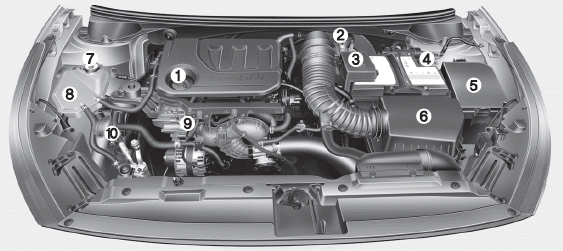

■ Gasoline Engine (Kappa 1.0 T-GDI)

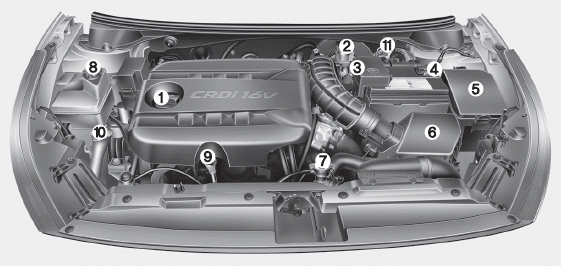

■ Diesel engine (UII)
