Kia Cee'd: Manual heating and air conditioning / Fan speed control
The fan speed can be set to the desired speed by pressing the fan speed control button.

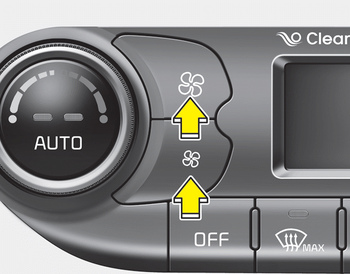

To change the fan speed, press the upper
button (
) for higher speed, or press
the lower button (
) for lower speed.
Pressing the OFF button turns off the
fan.
Air intake control
This is used to select the outside (fresh)
air position or recirculated air position.
To change the air intake control position,
push the control button.
Recirculated air position
With the ...
Air conditioning
Press the A/C button to turn the air conditioning
system on (indicator light will
illuminate).
Press the button again to turn the air
conditioning system off. ...
