Kia Cee'd: Front Suspension System / Front Strut Assembly Components and components location
Kia Cee'd JD Service Manual / Suspension System / Front Suspension System / Front Strut Assembly Components and components location

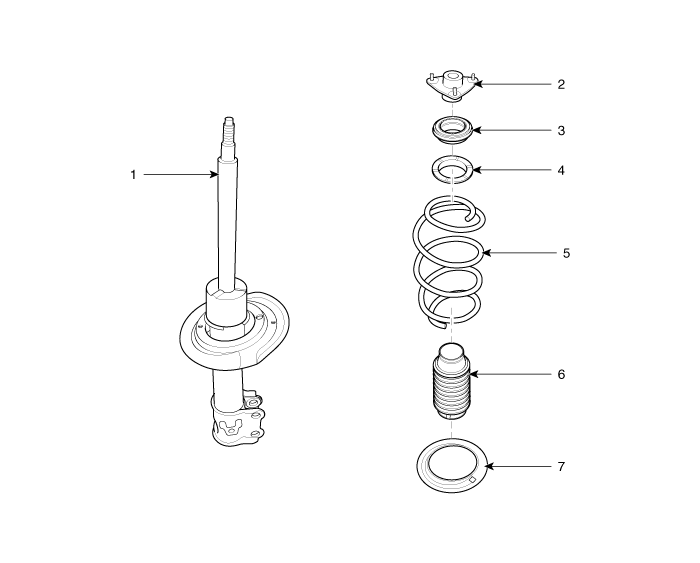

| Components |
| 1. Strut assembly 2. Insulator 3. Strut bearing 4. Spring upper pad |
5. Coil spring 6. Dust cover 7. Spring lower pad |
Components and components location
Components Location
1. Sub frame
2. Lower arm
3. Steering gearbox
4. Stabilizer bar
5. Front strut assembly
...
Front Strut Assembly Repair procedures
Replacement
1.
Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.
2.
Remove the front w ...
