Kia Cee'd JD Service Manual / Suspension System / Front Suspension System / Components and components location

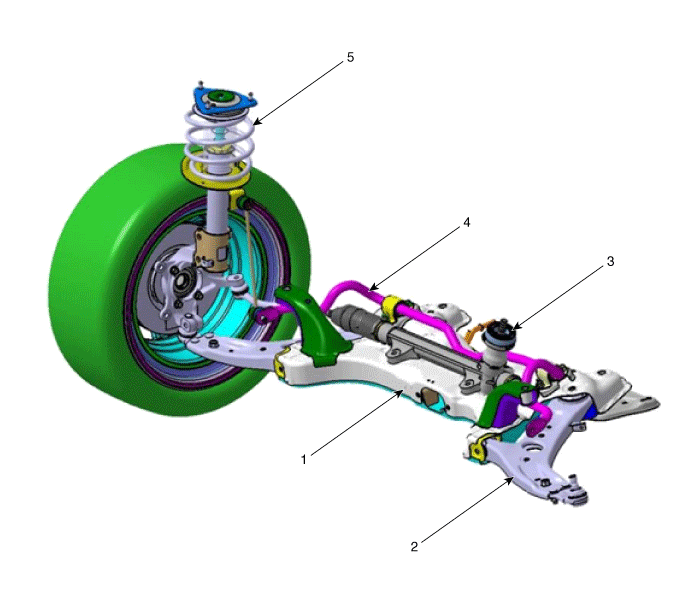

| Components Location |
| 1. Sub frame 2. Lower arm 3. Steering gearbox |
4. Stabilizer bar 5. Front strut assembly |
Front Strut Assembly Components and components location
Components
1. Strut assembly
2. Insulator
3. Strut bearing
4. Spring upper pad
5. Coil spring
6. Dust cover
7. Spring lower pad
...
