Kia Cee'd: Lighting System / Hazard Lamp Switch Repair procedures
Kia Cee'd JD Service Manual / Body Electrical System / Lighting System / Hazard Lamp Switch Repair procedures
| Inspection |
| 1. |
It will be able to diagnose defects of hazard switch with GDS quickly.
GDS can operates actuator forcefully, input/output value monitoring
and self diagnosis.
|
| 2. |
Select model and "BCM".
|
| 3. |
Select the "SJB" to check.
|
| 4. |

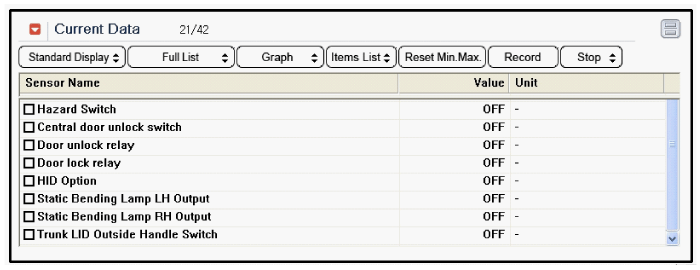

Select "Current data", if you will check current data of hazard switch.
It provides input/output status of SJB.
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the center airvent duct.
(Refer to Body - "Cluster Fascia Panel")
|
| 3. |
Remove the hazard switch (A) after disengaging the clip from the center
airvent duct.
|
| Installation |
| 1. |
Install the hazard switch to the center airvent duct.
|
| 2. |
Install the center airvent duct.
|
