Kia Cee'd: Lighting System / Head Lamps Components and components location
Kia Cee'd JD Service Manual / Body Electrical System / Lighting System / Head Lamps Components and components location
| Component |

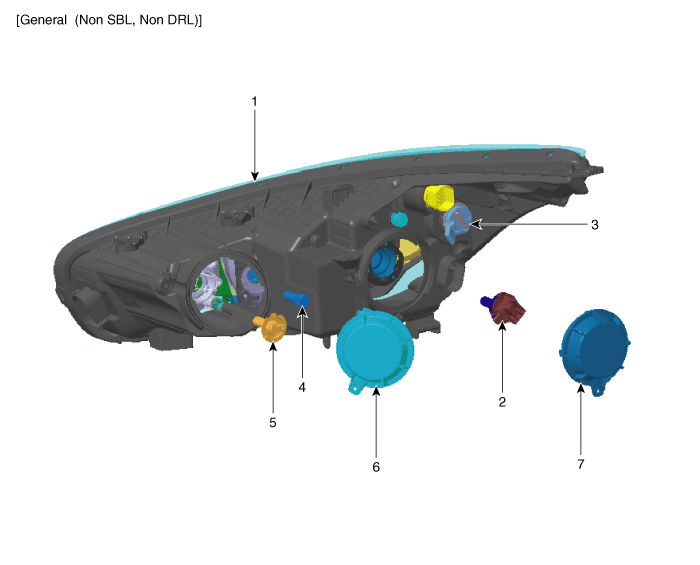

| 1. Head lamp assembly lens &
housing 2. Head lamp low beam bulb 3. Turn signal lamp bulb 4. Position lamp bulb |
5. Head lamp high beam bulb
6. Dust cap(High) 7. Dust cap(Low) |

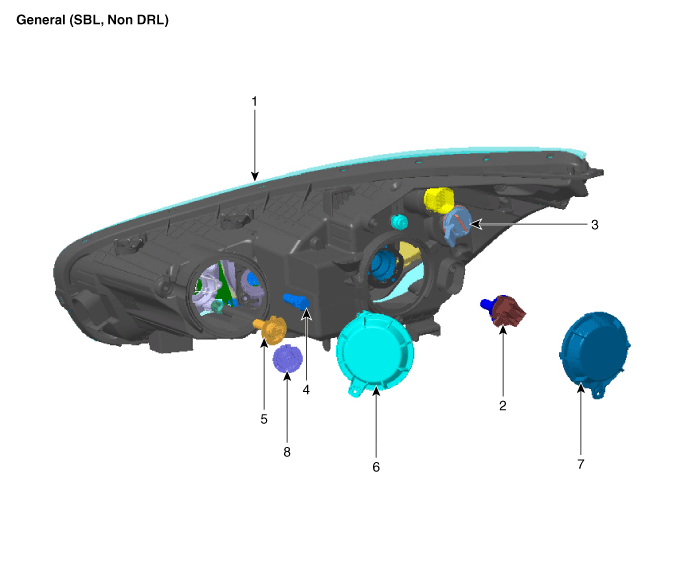

| 1. Head lamp assembly lens &
housing 2. Head lamp low beam bulb 3. Turn signal lamp bulb 4. Position lamp bulb |
5. Head lamp high beam bulb
6. Dust cap(High) 7. Dust cap(Low) 8. Static bending light |

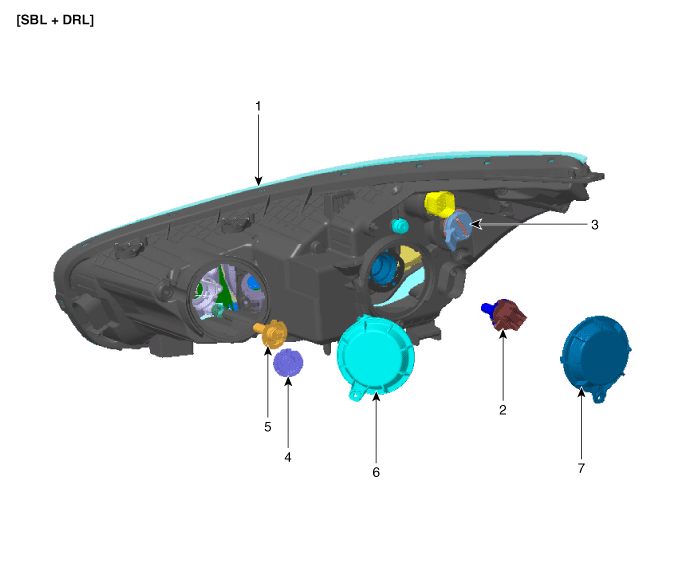

| 1. Head lamp assembly lens &
housing 2. Head lamp low beam bulb 3. Turn signal lamp bulb 4. Static bending light |
5. Head lamp high beam bulb
6. Dust cap(High) 7. Dust cap(Low) |

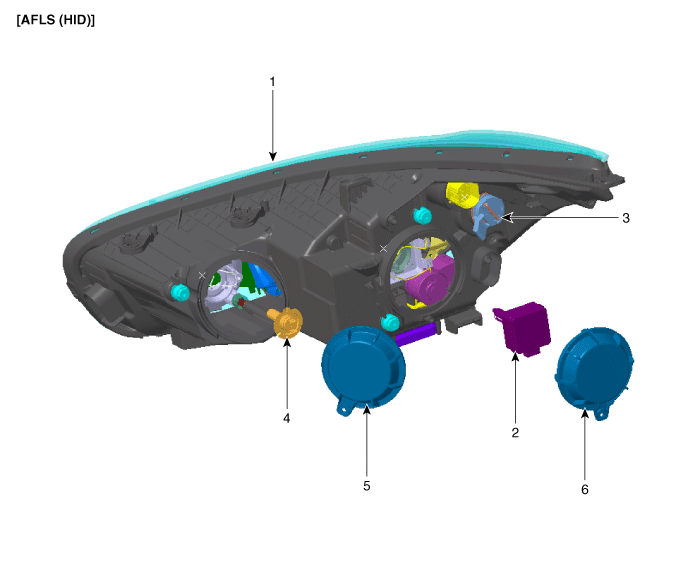

| 1. Head lamp assembly lens &
housing 2. Head lamp low HID & ignitor 3. Turn signal lamp bulb |
4. Head lamp high beam bulb
5. Dust cap(High) 6. Dust cap(Low) |
