Kia Cee'd: Front light replacement / Headlight (High, 1) and static bending light (2)
Kia Cee'd JD Owners Manual / Maintenance / Light bulbs / Front light replacement / Headlight (High, 1) and static bending
light (2)
Front light replacement
(1) Front turn signal light
(2) Headlight (Low)
(3) Static bending light (if equipped)
(4) Position light
(5) Position light / Daytime running light
(DRL, LED Type) (if equipped)
(6) Headligh ...
Follow the steps 1 to 7 from the previous
chapter.

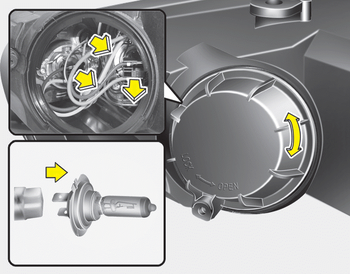

8. Remove the cover by turning it counterclockwise.
9. Disconnect the headlight bulb socketconnector.
10. Unsnap the headlight bulb retaining
wire by depressing the end and pushing
it upward.
1 ...
