Kia Cee'd: Light bulbs / Front light replacement

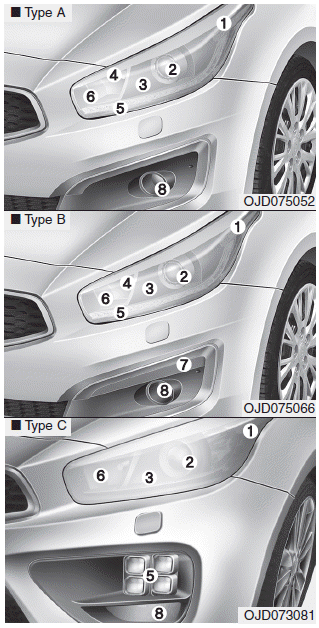

(1) Front turn signal light
(2) Headlight (Low)
(3) Static bending light (if equipped)
(4) Position light
(5) Position light / Daytime running light
(DRL, LED Type) (if equipped)
(6) Headlight (High)
(7) Daytime running light (DRL, Bulb type)
(if equipped)
(8) Front fog light (if equipped)
Diesel only
If you can reach the bulb without removing the headlight assembly, you do not need to do step 4 to 7.
4. Loosen the retaining bolts on the front bumper .

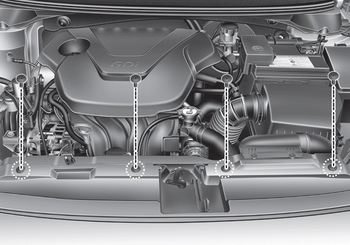

- Front bumper upper board : 4 EA

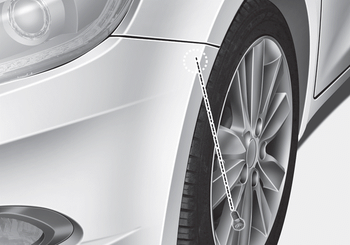

- Front bumper cover : 1 EA
Diesel only

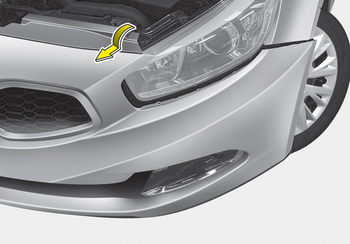

5. Pull out the front bumper cover.

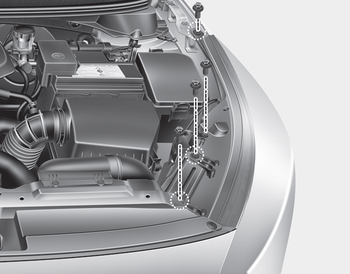

6. Loosen the retaining bolt .
7. Pull out the headlight assembly from the body of the vehicle.
- Headlight (High, 1) and static bending light (2)
- Follow the steps 1 to 7 from the previous chapter.
- Position light (3, bulb type)
- Headlight (Low, Non-HID Type)
- Headlight (Low, HID type), Position light/DRL (LED type)
- Turn signal light
- Front fog light, Daytime running light
Light bulbs
WARNING - Working on
the lights
Prior to working on the light, firmly
apply the parking brake, ensure
that the ignition switch is turned to
the “LOCK” position (smart key:
turn off the ...
