Kia Cee'd: Front light replacement / Front fog light, Daytime running light

Kia Cee'd JD Owners Manual / Maintenance / Light bulbs / Front light replacement / Front fog light, Daytime running light

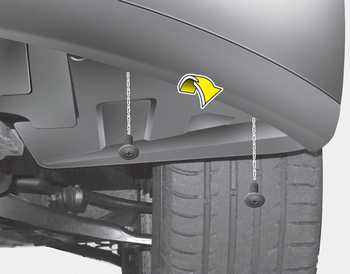

1. Pull the wheel guard down by rotating the screws.

2. Reach your hand into the back of the front bumper.

3. Disconnect the power connector from the socket.

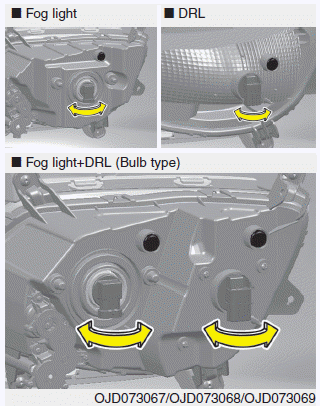

4. Remove the bulb-socket from the housing by turning the socket counter clockwise until the tabs on the socket align with the slots on the housing.

5. Install the new bulb-socket into the housing by aligning the tabs on the socket with the slots in the housing. Push the socket into the housing and turn the socket clockwise.

6. Connect the power connector to the socket.
