Kia Cee'd: Steering wheel / Heated Steering wheel Schematic diagrams
Kia Cee'd JD Service Manual / Steering System / Steering wheel / Heated Steering wheel Schematic diagrams

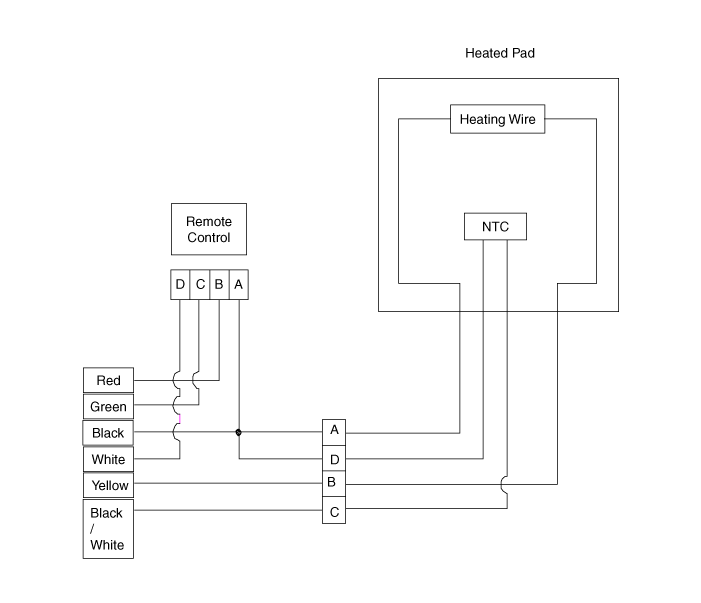

| System Circuit Diagram |

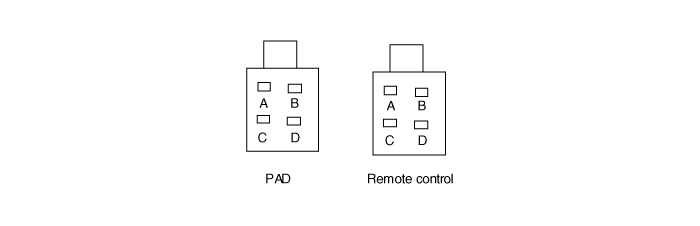

Terminal Function
|
Housing |
Pin |
Function |
Wire color |
|
Pad |
A |
GND |
Back |
|
B |
HEATER |
Yellow |
|
|
C |
NTC+ |
Back / Yellow |
|
|
D |
NTC- |
Back |
|
|
Remote control |
A |
GND |
Back |
|
B |
BAT |
Red |
|
|
C |
LED |
Green |
|
|
D |
SWITCH |
White |
Heated Steering wheel Description and operation
Description
"The heated steering wheel features an internal heating element that maintains
the steering wheel temperature to a consistent level during cold seasons. A
heater ...
Heated Steering wheel Repair procedures
Inpection
1.
Measure a resistance of NTC and Heated pad.
–
NTC resistance(Black / Yellow, Black) - 10.0 kΩ ± 10% (25°C)
...
Other information:
