Kia Cee'd: Heater / Heater Unit Components and components location
Kia Cee'd JD Service Manual / Heating,Ventilation, Air Conditioning / Heater / Heater Unit Components and components location

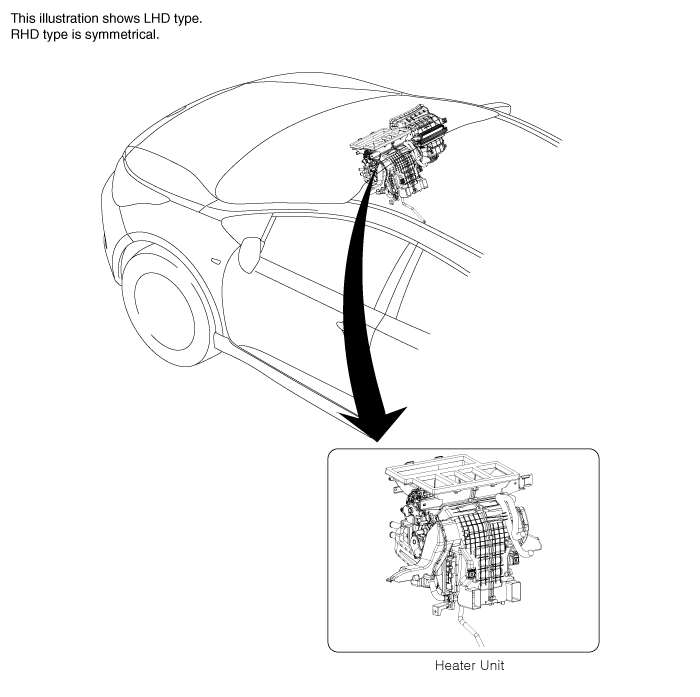

| Component Location |

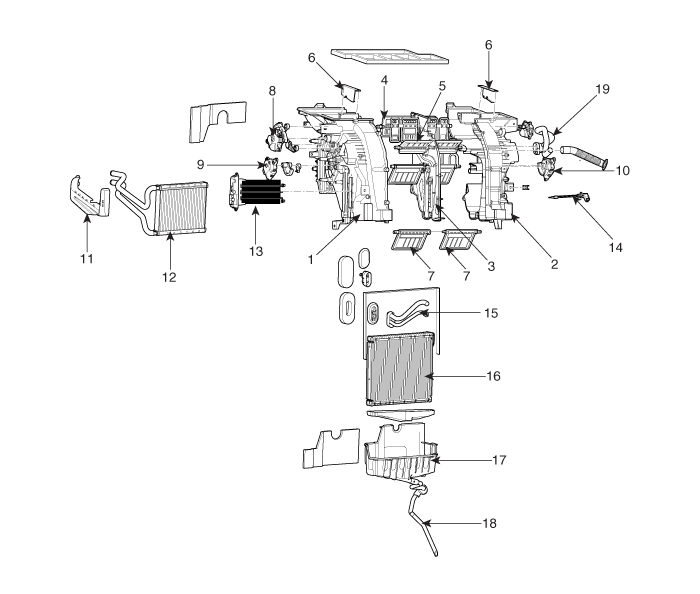

| Components |
| 1. Heat Case (Left) 2. Heat Case (Right) 3. Separator 4. Defog Door 5. Vent Door 6. Vent Guide 7. Temp Door 8. Mode Control Actuator 9. Temperature Control Actuator (Left) 10. Temperature Control Actuator (Right) |
11. Heater Pipe Cover 12. Heater Core 13. PTC Heater 14. Evaporator Temperature Sensor 15. Evaporator Pipe 16. Evaporator Core 17. Heater & Evaporator Lower Case 18. Drain Hose 19. Aspirator Hose |
Heater
...
Heater Unit Repair procedures
Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Recover the refrigerant with a recovery/recycling/charging station.
...
