Kia Cee'd: Ignition System / Ignition Coil Schematic diagrams
Kia Cee'd JD Service Manual / Engine Electrical System / Ignition System / Ignition Coil Schematic diagrams

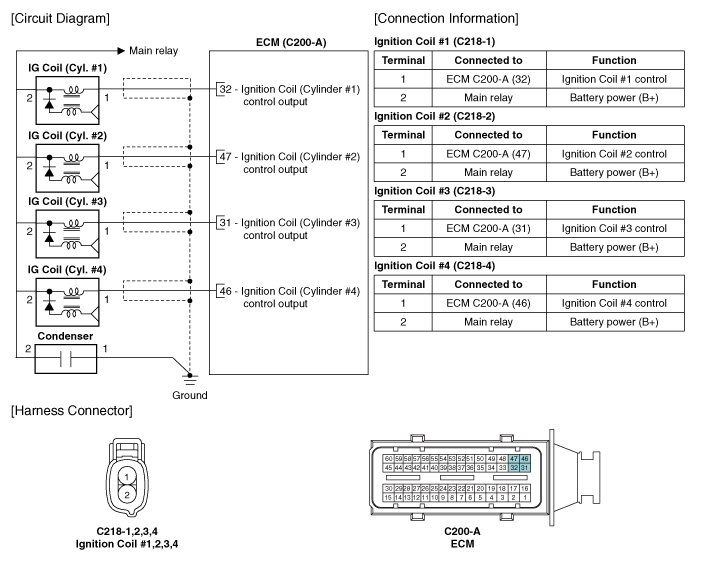

| Circuit Diagram |
