Kia Cee'd: Engine Control System / Injector Troubleshooting
| Signal Waveform |

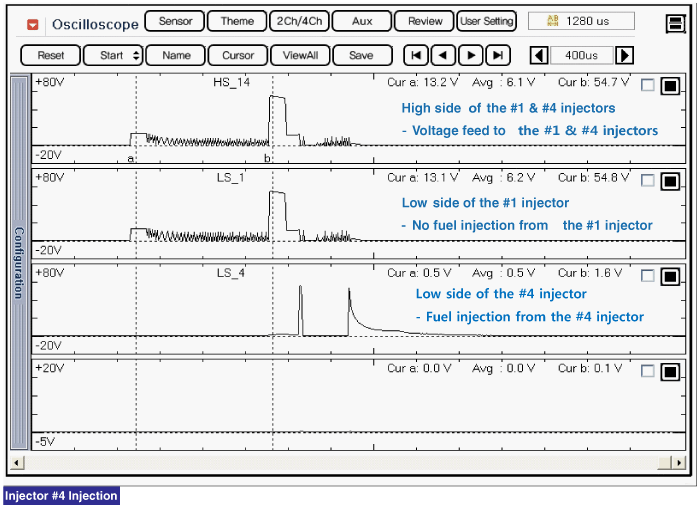

The three waveforms below are taken from the #1 and #4 injectors. The top waveform
is from the high side (feed side) of the #1 and #4 injectors, while the middle
waveform is from the low side (ground side) of the #1 injector and the bottom
waveform is from the low side of the #4 injector.
The middle waveform is the same as the top waveform because there is no ground
for the circuit. With no current flowing in the circuit, the #1 injector is
not energized and fuel does not flow.
The bottom waveform shows that ground is supplied and there is a voltage drop
across the #4 injector. With current flowing in the circuit, the #4 injector
is energized and fuel flows.
Injector Specifications
Specification
Item
Specification
Coil Resistance (Ω)
1.5 ± 5％[20°C(68°F)]
...
Injector Schematic diagrams
Circuit Diagram
...
