Kia Cee'd: Dual Clutch Transmission Control System / Input Speed Sensor 1 Schematic diagrams
Kia Cee'd JD Service Manual / Dual Clutch Transmission(DCT) System / Dual Clutch Transmission Control System / Input Speed Sensor 1 Schematic diagrams

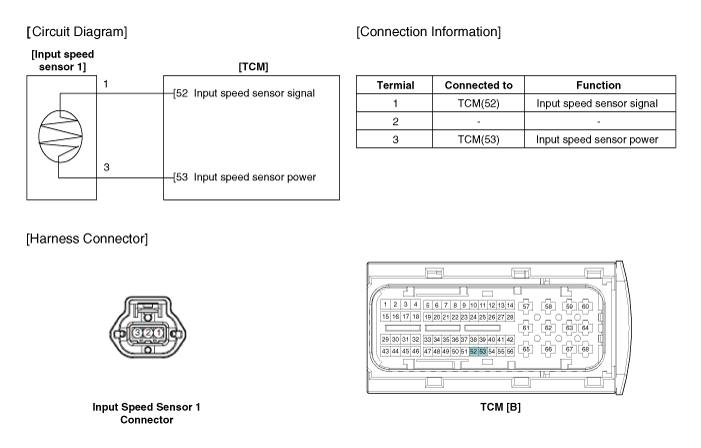

| Schematic Diagrams |
Input Speed Sensor 1 Specifications
Specification
Input Speed Sensor 1
▷ Type: Hall effect sensor
▷ Specifications
Item
Specifications
Output voltage (V) ...
Input Speed Sensor 1 Repair procedures
Inspection
Refer to DTC code "P2765, P2766" Input Shaft Speed Sensor.
Removal
1.
Turn off the ignition switch and then disconnect the batte ...
