Kia Cee'd: Intake And Exhaust System / Intake Manifold Components and components location
Kia Cee'd JD Service Manual / Engine Mechanical System / Intake And Exhaust System / Intake Manifold Components and components location

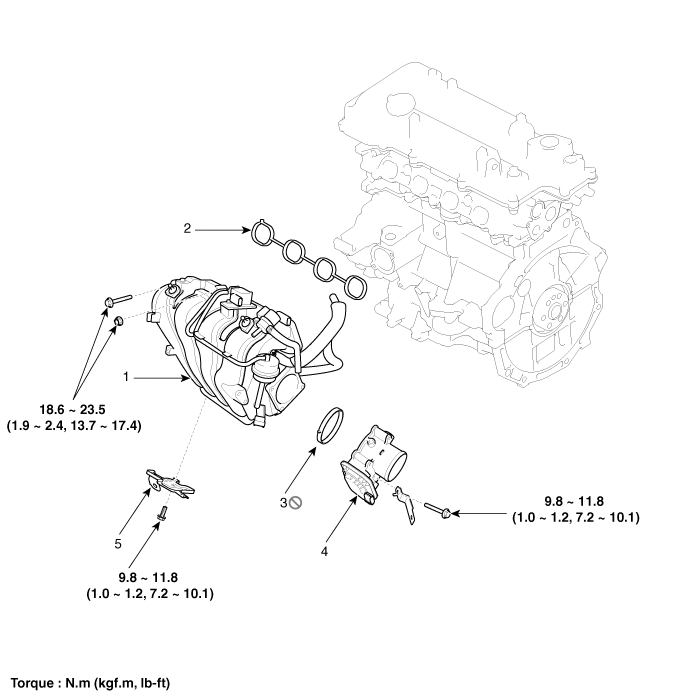

| Components |
| 1. Intake manifold assembly
2. Intake manifold gasket |
3. Electronic throttle body gasket
4. Electronic throttle body 5. Bracket |
