Kia Cee'd: Interior features / Luggage net (holder)
■ Type A
■ Type B (for wagon) • Front
■ Type B (for wagon) • Rear

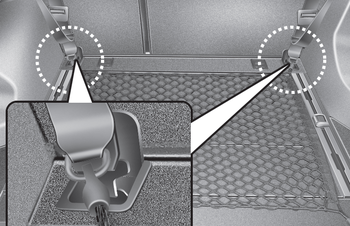

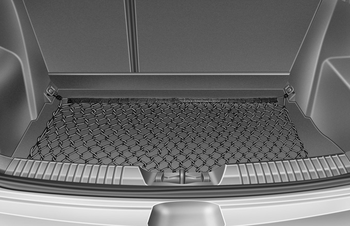

To keep items from shifting in the cargo area, you can use the four holders located in the cargo area to attach the luggage net.
This symbol indicates the position of the front holders (wagon).
If necessary, we recommend that you contact an authorized Kia dealer.
CAUTION
To prevent damage to the goods or the vehicle, care should be taken when carrying fragile or bulky objects in the luggage compartment.
WARNING
To avoid eye injury, DO NOT overstretch the luggage net. ALWAYS keep your face and body out of the luggage net’s recoil path. DO NOT use the luggage net when the strap has visible signs of wear or damage.
