Kia Cee'd: Dual Clutch Transmission Control System / Gear Actuator Components and components location
Kia Cee'd JD Service Manual / Dual Clutch Transmission(DCT) System / Dual Clutch Transmission Control System / Gear Actuator Components and components location

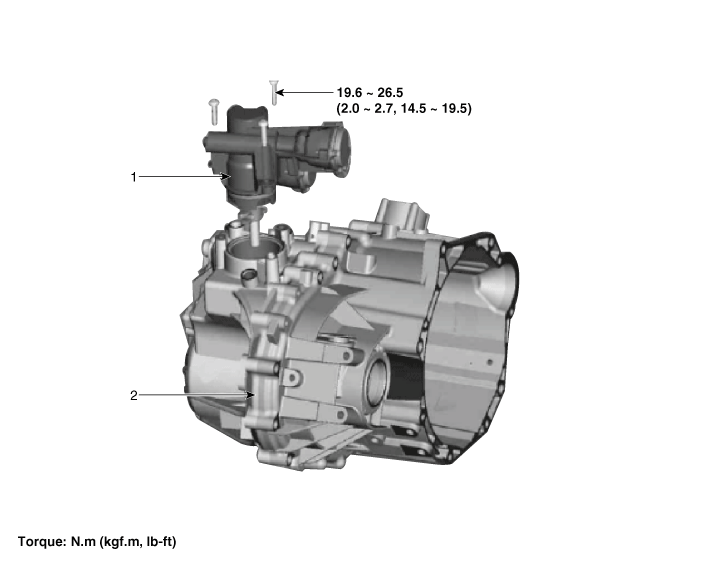

| Component Location |
| 1. Gear actuator |
2. Dual Clutch Transmission (DCT)
|
Shift Cable Repair procedures
Removal
1.
Remove the floor console assembly.
(Refer to Body - "Floor Console")
2.
Remove the air duct.
...
Gear Actuator Repair procedures
Removal
1.
Turn off the ignition switch and then disconnect the battery (-) cable.
2.
Remove the air cleaner assembly and air duct.
...
