Kia Cee'd: Power Windows / Power Window Switch Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Power Windows / Power Window Switch Schematic diagrams

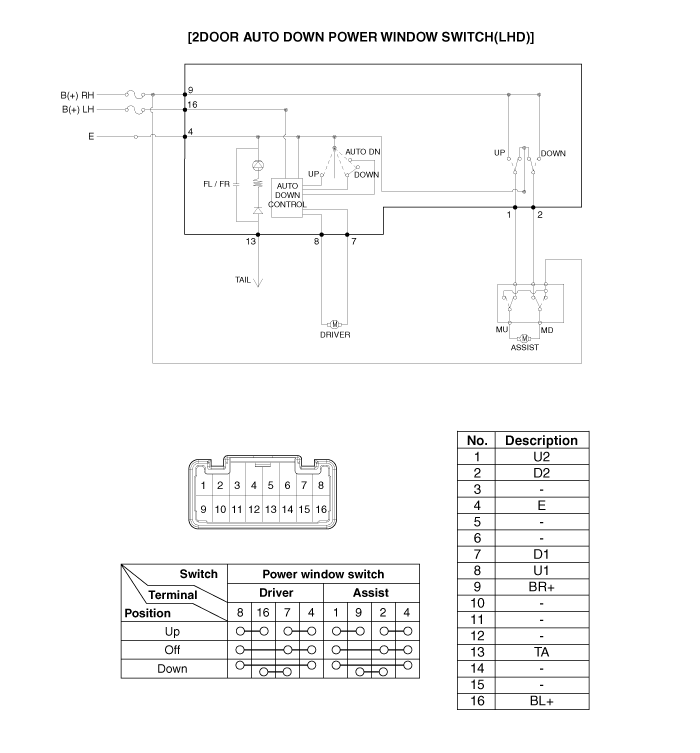

| Circuit Diagram |

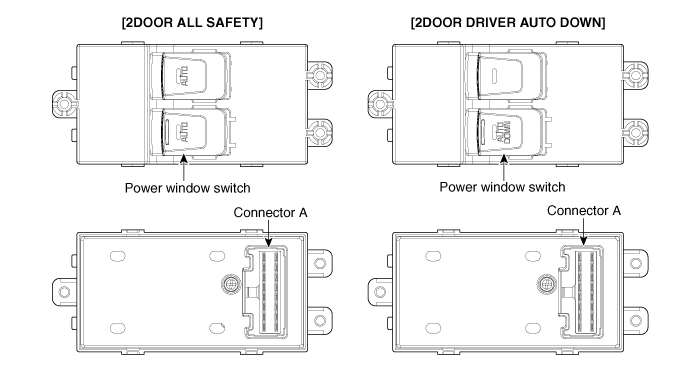

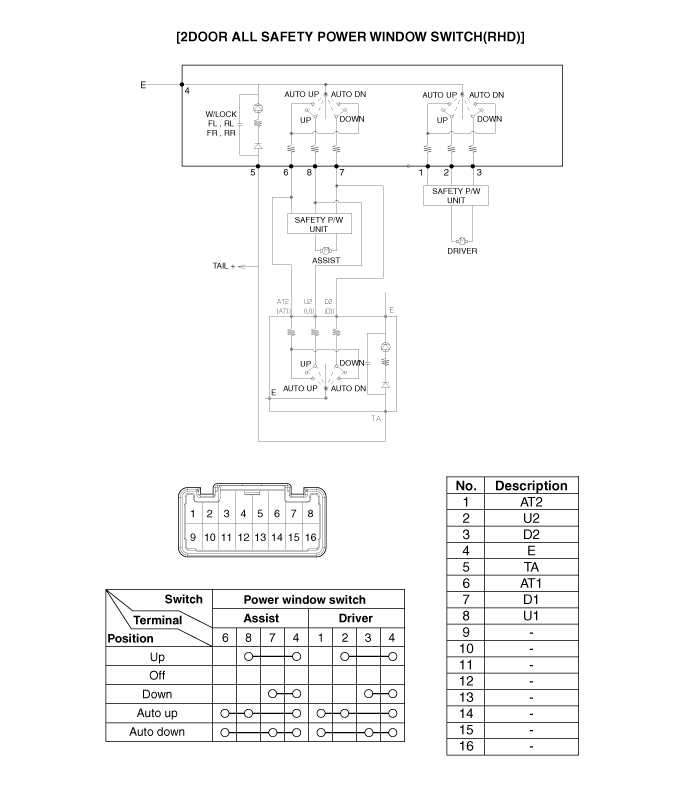

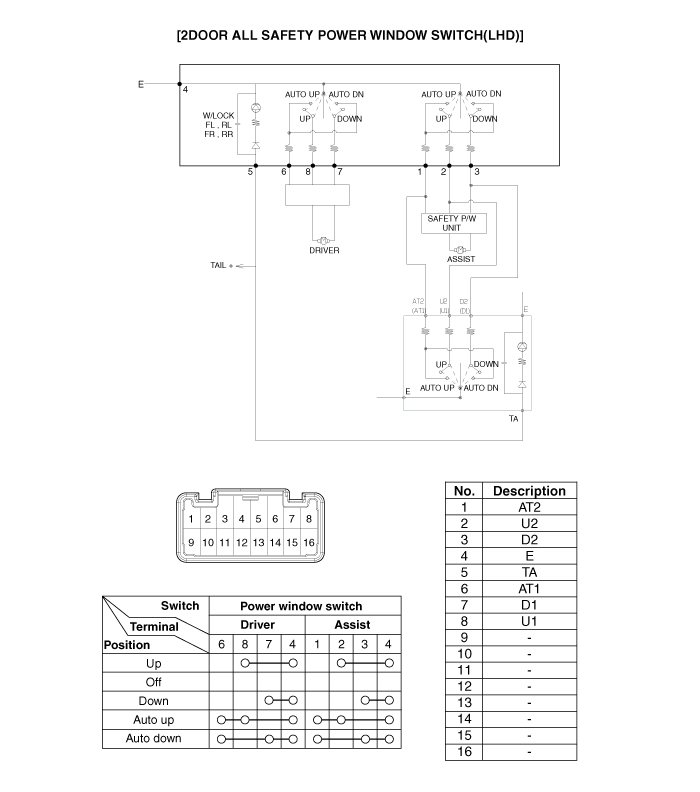

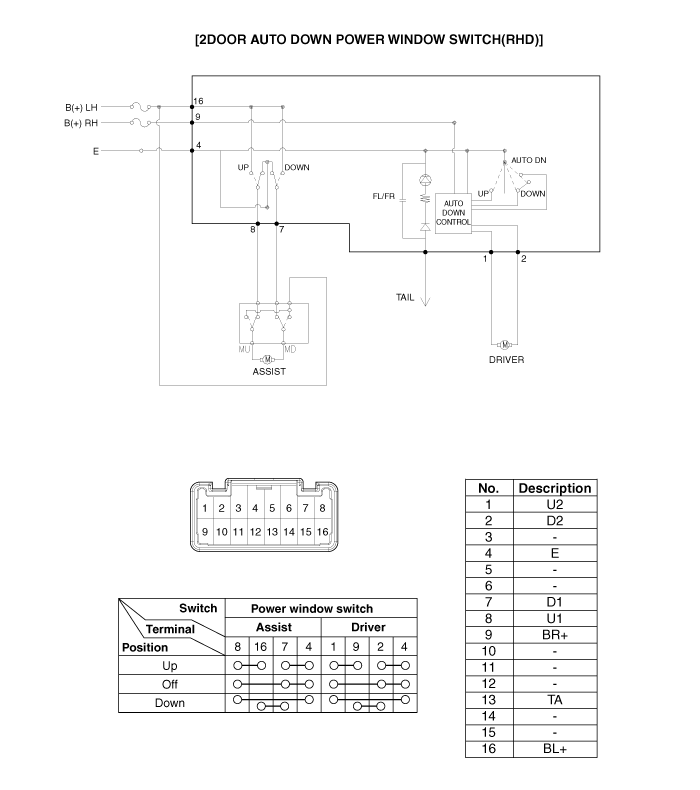

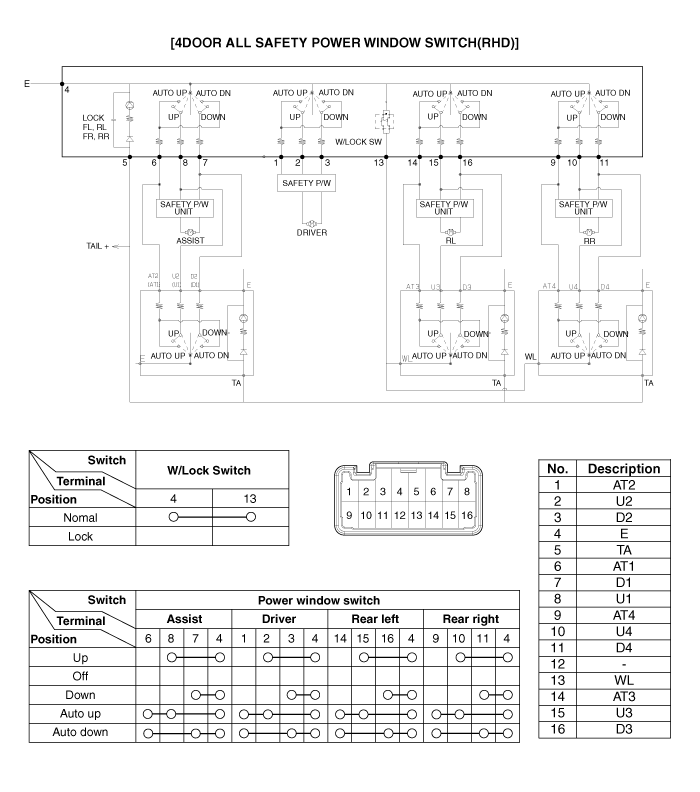

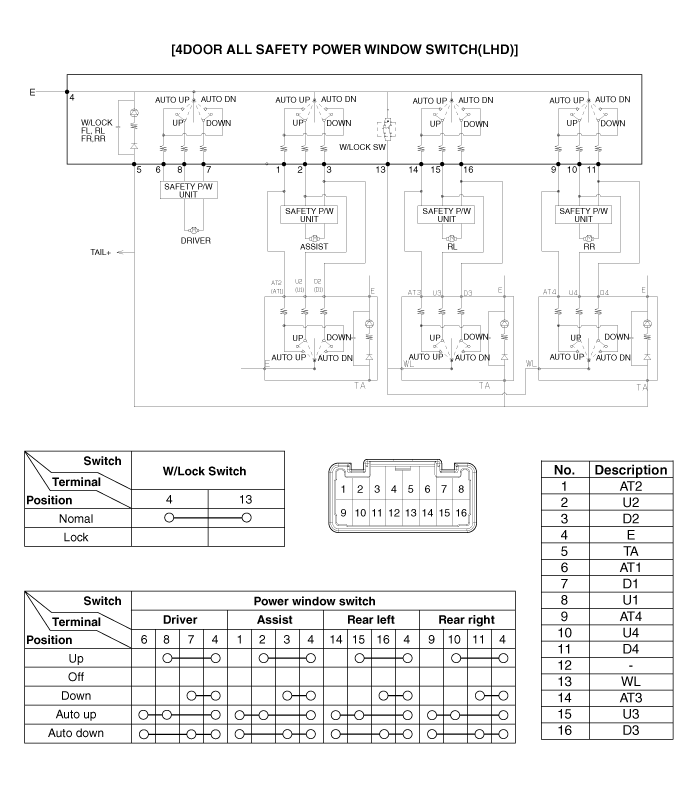

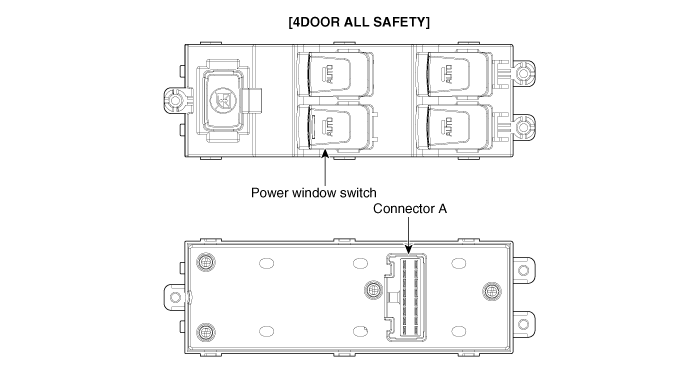

| Driver Power Window Switch |

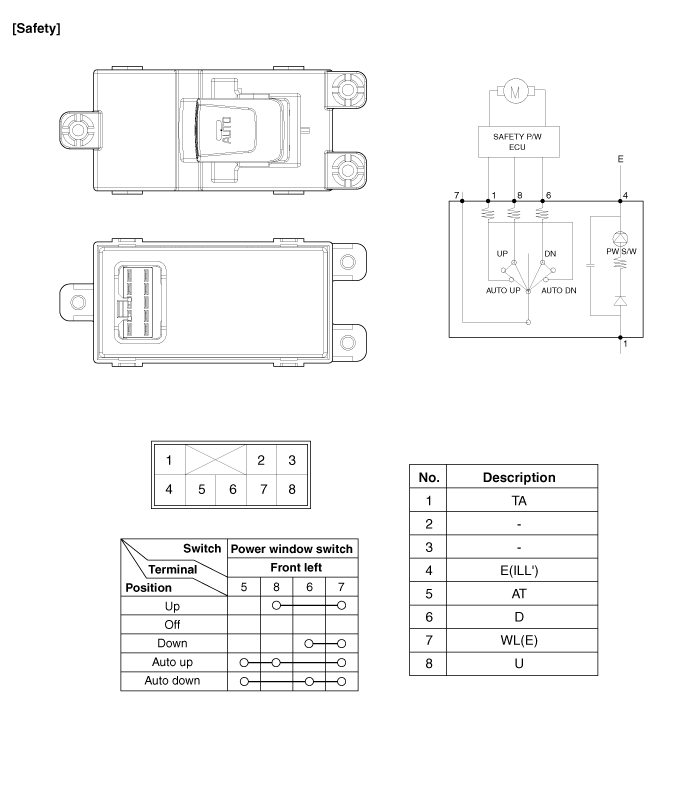

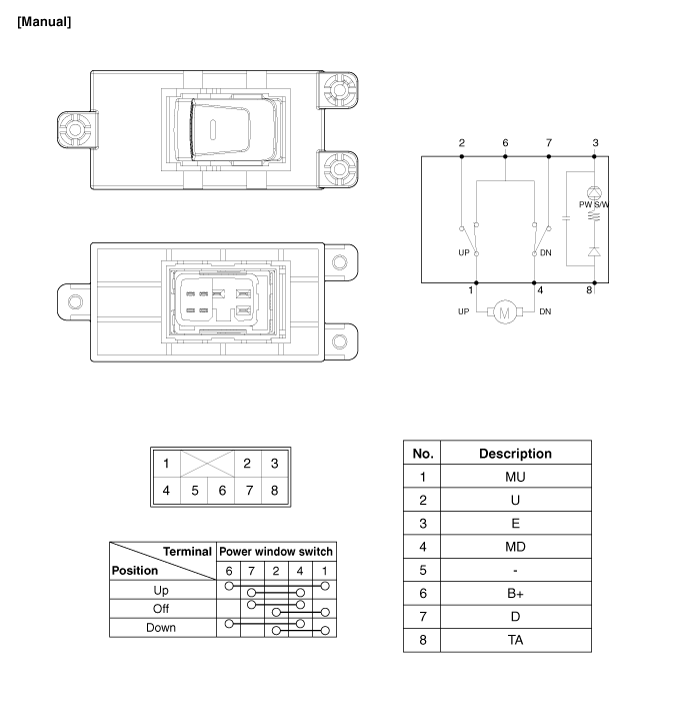

| Passenger & Rear Power Window Switch |
Power Window Motor Repair procedures
Inspection
Front Power Window Motor Inspection
1.
Remove the front door trim.
(Refer to Body - "Front Door Trim")
2.
...
Power Window Switch Repair procedures
Inspection
Power Window Main Switch Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door trim.
...
