Kia Cee'd: Power Door Mirrors / Power Outside Mirror Switch Repair procedures
Kia Cee'd JD Service Manual / Body Electrical System / Power Door Mirrors / Power Outside Mirror Switch Repair procedures
| Inspection |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |

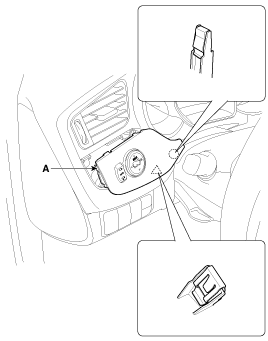

Remove the the crash pad garnish [LH] (A).
(Refer to Body - "Cluster Fascia Panel")
|
| 3. |
Check for continuity between the terminals in each switch position according
to the table.
[Power Mirror Switch (LHD)]
[Folding Mirror Switch (LHD)]
[Power Mirror Switch (RHD)]
[Folding Mirror Switch (RHD)]
|
| Removal |
| 1. |
Disconnect the negative(-) battery terminal.
|
| 2. |
Remove the the crash pad garnish [LH] (A).
(Refer to Body - "Cluster Fascia Panel")
|
| 3. |
Disconnect the power door mirror switch connector (A).
|
| 4. |
Remove the power door mirror switch (A) after loosening the mounting
screws.
|
| Installation |
| 1. |
Install the power window switch and connector.
|
| 2. |
Install the crash pad garnish [LH].
|
Power Outside Mirror Switch Schematic diagrams
Circuit Diagram
...
Power Door Mirror Actuator Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front door quadrant innen cover.
3. ...
