Kia Cee'd: Power Door Mirrors / Power Outside Mirror Switch Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Power Door Mirrors / Power Outside Mirror Switch Schematic diagrams

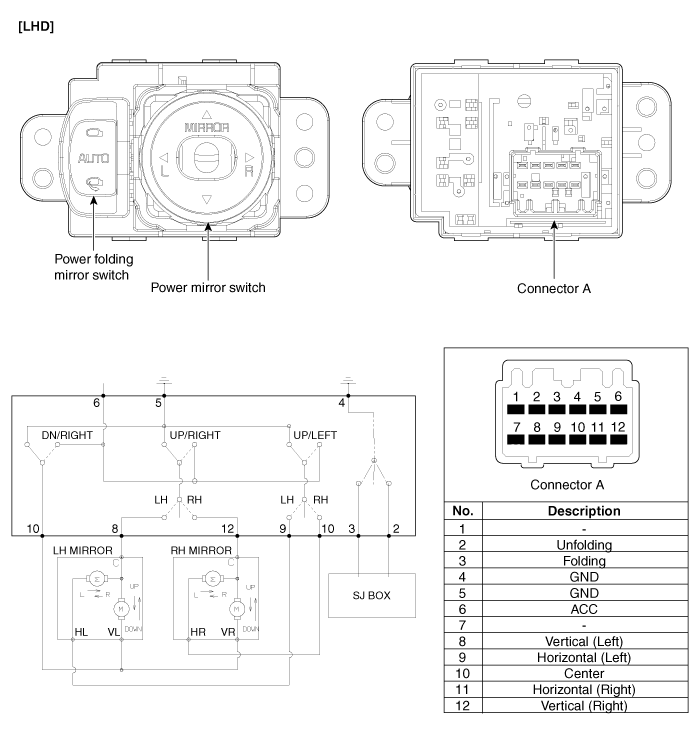

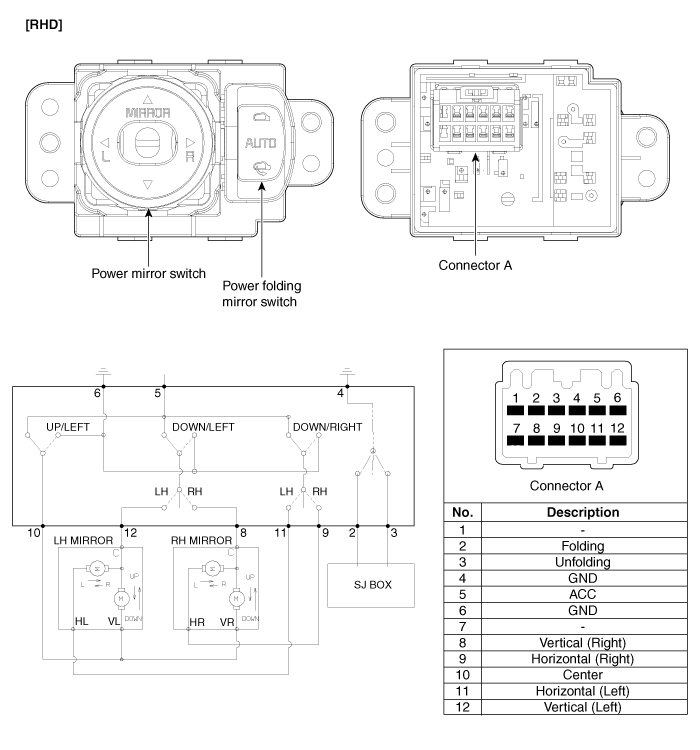

| Circuit Diagram |
Components and components location
Components
1. Power door mirror
2. Power door mirror switch
3. Power folding mirror switch
...
Power Outside Mirror Switch Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the the crash pad garnish [LH] (A).
(Refer to Body - &quo ...
